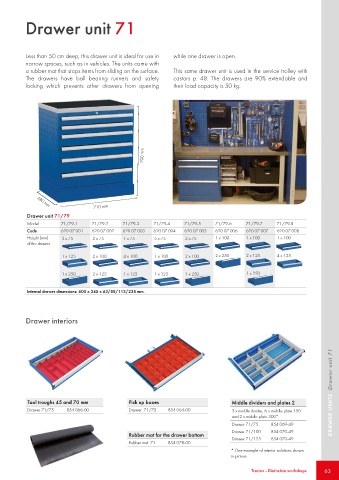

Drawer unit 71

Less than 50 cm deep, this drawer unit is ideal for use in while one drawer is open.
narrow spaces, such as in vehicles. The units come with
a rubber mat that stops items from sliding on the surface. This same drawer unit is used in the service trolley with
The drawers have ball bearing runners and safety castors p. 48. The drawers are 90% extendable and
locking which prevents other drawers from opening their load capacity is 50 kg.

790 mm

710 mm
480 mm
Drawer unit 71/79
Model 71/79-1 71/79-2 71/79-3 71/79-4 71/79-5 71/79-6 71/79-7 71/79-8
Code 620 07 001 620 07 002 620 07 003 620 07 004 620 07 005 620 07 006 620 07 007 620 07 008
Height (mm) 3 x 75 2 x 75 1 x 75 5 x 75 2 x 75 1 x 100 1 x 100 1 x 100
of the drawer

1 x 125 2 x 100 4 x 100 1 x 100 2 x 100 2 x 250 2 x 125 4 x 125

1 x 250 2 x 125 1 x 125 1 x 125 1 x 250 1 x 250

Internal drawer dimensions: 600 x 345 x 63/88/113/238 mm.

Drawer interiors

DRAWER UNITS Drawer unit 71

Tool troughs 45 and 70 mm Pick up boxes Middle dividers and plates 2
Drawer 71/75 854 066-00 Drawer 71/75 854 064-00 3 x middle divider, 6 x middle plate 150
and 2 x middle plate 300*
Drawer 71/75 854 069-49
Drawer 71/100 854 070-49
Rubber mat for the drawer bottom
Drawer 71/125 854 070-49
Rubber mat 71 854 078-00
* One example of interior solutions shown
in picture.
