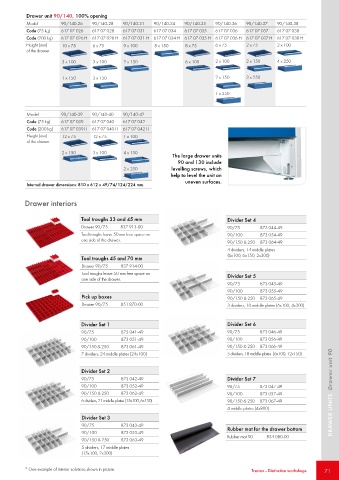

Page 71 - Treston

Drawer unit 90/140, 100% opening
Model 90/140-26 90/140-28 90/140-31 90/140-34 90/140-35 90/140-36 90/140-37 90/140-38
Code (75 kg) 617 07 026 617 07 028 617 07 031 617 07 034 617 07 035 617 07 036 617 07 037 617 07 038
Code (200 kg) 617 07 026 H 617 07 028 H 617 07 031 H 617 07 034 H 617 07 035 H 617 07 036 H 617 07 037 H 617 07 038 H
Height (mm) 10 x 75 6 x 75 9 x 100 8 x 150 8 x 75 6 x 75 2 x 75 2 x 100
of the drawer

3 x 100 3 x 100 2 x 150 6 x 100 2 x 100 2 x 150 4 x 250

1 x 150 3 x 150 2 x 150 3 x 250

1 x 250

Model 90/140-39 90/140-40 90/140-42
Code (75 kg) 617 07 039 617 07 040 617 07 042
Code (200 kg) 617 07 039 H 617 07 040 H 617 07 042 H
Height (mm) 12 x 75 12 x 75 1 x 100
of the drawer

2 x 150 3 x 100 4 x 150
The large drawer units
90 and 130 include
2 x 250 levelling screws, which
help to level the unit on
uneven surfaces.
Internal drawer dimensions: 810 x 612 x 49/74/124/224 mm.

Drawer interiors

Tool troughs 33 and 45 mm Divider Set 4
Drawer 90/75 837 913-00 90/75 873 044-49
Tool troughs leave 50 mm free space on 90/100 873 054-49
one side of the drawer.
90/150 & 250 873 064-49
4 dividers, 14 middle plates
(6x100, 6x150, 2x300)
Tool troughs 45 and 70 mm
Drawer 90/75 837 914-00
Tool troughs leave 50 mm free space on Divider Set 5
one side of the drawer.
90/75 873 045-49
90/100 873 055-49
Pick up boxes 90/150 & 250 873 065-49
Drawer 90/75 851 870-00 3 dividers, 10 middle plates (6x100, 4x300)

Divider Set 1 Divider Set 6
90/75 873 041-49 90/75 873 046-49
90/100 873 051-49 90/100 873 056-49
90/150 & 250 873 061-49 90/150 & 250 873 066-49
7 dividers, 24 middle plates (24x100) 5 dividers, 18 middle plates (6x100, 12x150)

Divider Set 2
90/75 873 042-49 Divider Set 7
90/100 873 052-49 90/75 873 047-49
90/150 & 250 873 062-49 90/100 873 057-49 DRAWER UNITS Drawer unit 90
6 dividers, 21 middle plates (15x100, 6x150) 90/150 & 250 873 067-49
4 middle plates (4x800)
Divider Set 3
90/75 873 043-49
Rubber mat for the drawer bottom
90/100 873 053-49
Rubber mat 90 854 080-00
90/150 & 250 873 063-49
5 dividers, 17 middle plates
(15x100, 2x300)

* One example of interior solutions shown in picture. Treston - Distinctive workshops 71
