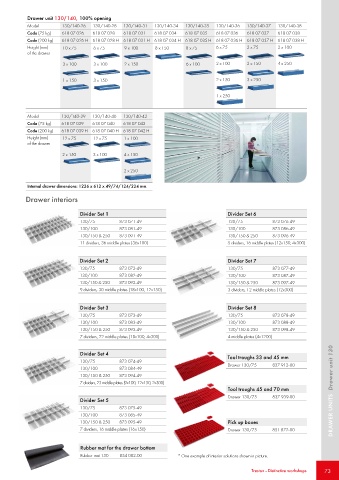

Page 73 - Treston

Drawer unit 130/140, 100% opening
Model 130/140-26 130/140-28 130/140-31 130/140-34 130/140-35 130/140-36 130/140-37 130/140-38
Code (75 kg) 618 07 026 618 07 028 618 07 031 618 07 034 618 07 035 618 07 036 618 07 037 618 07 038
Code (200 kg) 618 07 026 H 618 07 028 H 618 07 031 H 618 07 034 H 618 07 035 H 618 07 036 H 618 07 037 H 618 07 038 H
Height (mm) 10 x 75 6 x 75 9 x 100 8 x 150 8 x 75 6 x 75 2 x 75 2 x 100
of the drawer

3 x 100 3 x 100 2 x 150 6 x 100 2 x 100 2 x 150 4 x 250

1 x 150 3 x 150 2 x 150 3 x 250

1 x 250

Model 130/140-39 130/140-40 130/140-42
Code (75 kg) 618 07 039 618 07 040 618 07 042
Code (200 kg) 618 07 039 H 618 07 040 H 618 07 042 H
Height (mm) 12 x 75 12 x 75 1 x 100
of the drawer
2 x 150 3 x 100 4 x 150

2 x 250

Internal drawer dimensions: 1226 x 612 x 49/74/124/224 mm.

Drawer interiors

Divider Set 1 Divider Set 6
130/75 873 071-49 130/75 873 076-49
130/100 873 081-49 130/100 873 086-49
130/150 & 250 873 091-49 130/150 & 250 873 096-49
11 dividers, 36 middle plates (36x100) 5 dividers, 16 middle plates (12x150, 4x300)

Divider Set 2 Divider Set 7
130/75 873 072-49 130/75 873 077-49
130/100 873 082-49 130/100 873 087-49
130/150 & 250 873 092-49 130/150 & 250 873 097-49
9 dividers, 30 middle plates (18x100, 12x150) 3 dividers, 12 middle plates (12x300)

Divider Set 3 Divider Set 8
130/75 873 073-49 130/75 873 078-49
130/100 873 083-49 130/100 873 088-49
130/150 & 250 873 093-49 130/150 & 250 873 098-49
7 dividers, 22 middle plates (18x100, 4x300) 4 middle plates (4x1200)

Divider Set 4
Tool troughs 33 and 45 mm
130/75 873 074-49 Drawer 130/75 837 912-00
130/100 873 084-49
130/150 & 250 873 094-49
7 dividers, 23 middle plates (9x100, 12x150, 2x300)
Tool troughs 45 and 70 mm DRAWER UNITS Drawer unit 130
Drawer 130/75 837 939-00
Divider Set 5
130/75 873 075-49
130/100 873 085-49
130/150 & 250 873 095-49 Pick up boxes
7 dividers, 16 middle plates (16x150) Drawer 130/75 851 872-00

Rubber mat for the drawer bottom
Rubber mat 130 854 082-00 * One example of interior solutions shown in picture.
