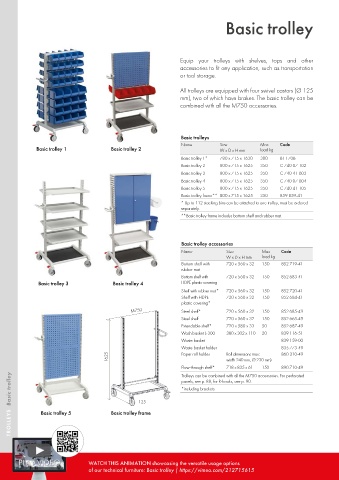

Page 54 - Treston

Basic trolley

Equip your trolleys with shelves, tops and other
accessories to fit any application, such as transportation
or tool storage.

All trolleys are equipped with four swivel castors (Ø 125
mm), two of which have brakes. The basic trolley can be
combined with all the M750 accessories.

Basic trolleys
Name Size Max Code
Basic trolley 1 Basic trolley 2 W x D x H mm load kg
Basic trolley 1* 780 x 715 x 1630 300 BT-170B
Basic trolley 2 800 x 715 x 1625 350 C 740 07 102
Basic trolley 3 800 x 715 x 1625 350 C 740 41 003
Basic trolley 4 800 x 715 x 1625 350 C 740 07 004
Basic trolley 5 800 x 715 x 1625 350 C 740 41 105
Basic trolley frame** 800 x 715 x 1625 350 859 859-41
* Up to 112 stacking bins can be attached to one trolley, must be ordered
separately.
**Basic trolley frame includes bottom shelf and rubber mat.

Basic trolley accessories
Name Size Max Code
W x D x H mm load kg
Bottom shelf with 720 x 560 x 32 150 852 719-41
rubber mat
Bottom shelf with 720 x 560 x 32 150 852 683-41
Basic trolley 3 Basic trolley 4 HDPE plastic covering
Shelf with rubber mat* 720 x 560 x 32 150 852 720-41
Shelf with HDPE 720 x 560 x 32 150 852 684-41
plastic covering*
M750 Steel shelf* 720 x 560 x 32 150 852 685-49
Steel shelf 720 x 560 x 32 150 852 665-49
Extendable shelf* 720 x 580 x 33 50 852 687-49
Wash basket L-300 380 x 302 x 110 20 839 116-51
Waste basket 839 159-00
Waste basket holder 835 773-49
1625 Paper roll holder Roll dimensions max: 860 310-49
width 240 mm, Ø 230 mm)
Flow-through shelf* 718 x 835 x 61 150 890 710-49
TROLLEYS Basic trolley Basic trolley 5 Basic trolley frame *including brackets
Trolleys can be combined with all the M750 accessories. For perforated
panels, see p. 88, for R-hooks, see p. 90.

125

WATCH THIS ANIMATION showcasing the versatile usage options
