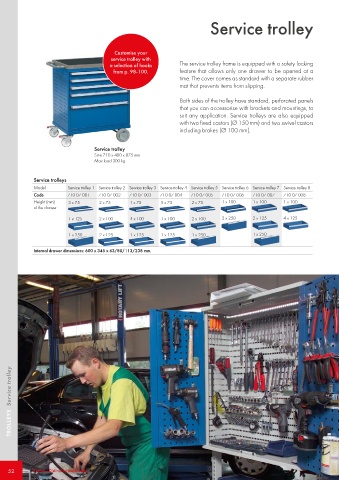

Page 52 - Treston

Service trolley

Customise your
service trolley with
a selection of hooks The service trolley frame is equipped with a safety locking
from p. 98-100. feature that allows only one drawer to be opened at a
time. The cover comes as standard with a separate rubber
mat that prevents items from slipping.

Both sides of the trolley have standard, perforated panels
that you can accessorise with brackets and mountings, to
suit any application. Service trolleys are also equipped
with two fixed castors (Ø 150 mm) and two swivel castors
including brakes (Ø 100 mm).

Service trolley
Size 710 x 480 x 875 mm
Max load 300 kg

Service trolleys
Model Service trolley 1 Service trolley 2 Service trolley 3 Service trolley 4 Service trolley 5 Service trolley 6 Service trolley 7 Service trolley 8
Code 710 07 001 710 07 002 710 07 003 710 07 004 710 07 005 710 07 006 710 07 007 710 07 008
Height (mm) 3 x 75 2 x 75 1 x 75 5 x 75 2 x 75 1 x 100 1 x 100 1 x 100
of the drawer
1 x 125 2 x 100 4 x 100 1 x 100 2 x 100 2 x 250 2 x 125 4 x 125

1 x 250 2 x 125 1 x 125 1 x 125 1 x 250 1 x 250

Internal drawer dimensions: 600 x 345 x 63/88/113/238 mm.

TROLLEYS Service trolley

52 52 Treston - Distinctive workshops
