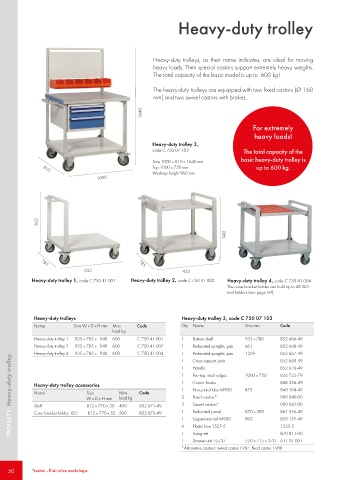

Page 50 - Treston

Heavy-duty trolley

Heavy-duty trolleys, as their name indicates, are ideal for moving
heavy loads. Their special castors support extremely heavy weights.
The total capacity of the basic model is up to 600 kg!

The heavy-duty trolleys are equipped with two fixed castors (Ø 160
mm) and two swivel castors with brakes.

1640

For extremely
heavy loads!
Heavy-duty trolley 3,
code C 750 07 103 The total capacity of the
basic heavy-duty trolley is
Size 1000 x 810 x 1640 mm
Top 1000 x 750 mm up to 600 kg.
810
Worktop height 960 mm
1000

940

940

785
935 785 935
Heavy-duty trolley 1, code C 750 41 001 Heavy-duty trolley 2, code C 750 41 002 Heavy-duty trolley 4, code C 750 41 004
The cone bracket holder can hold up to 48 ISO
tool holders (see page 69).

Heavy-duty trolleys Heavy-duty trolley 3, code C 750 07 103
Name Size W x D x H mm Max Code Qty Name Size mm Code
load kg
Heavy-duty trolley 1 935 x 785 x 940 600 C 750 41 001 1 Bottom shelf 933 x 780 852 666-49
Heavy-duty trolley 2 935 x 785 x 940 600 C 750 41 002 1 Perforated uprights, pair 661 852 668-49
Heavy-duty trolley 4 935 x 785 x 940 600 C 750 41 004 1 1 1 Perforated uprights, pair 1359 852 667-49
TROLLEYS Heavy-duty trolley Heavy-duty trolley accessories Max Code 1 1 1 2 2 1 Pvc-top, steel edges 1000 x 750 836 723-79
Cross support, pair
852 669-49
852 670-49
Handle
848 336-49
Corner hooks
873
Horizontal tube M900
840 104-49
Size
Name
Fixed castors*
900 040-00
load kg
W x D x H mm
900 041-00
Swivel castors*
852 671-49
Shelf
400
812 x 770 x 30
870 x 389
Perforated panel
861 516-49
852 673-49
812 x 770 x 52 500
Cone bracket holder, ISO
1525-5
Plastic box 1525-5
870 811-00
Fixing set
611 07 001
1 1 6 1 Suspension rail M900 895 859 152-49
550 x 715 x 370
Drawer unit 55/37
*Alternative castors: swivel castor 1987, fixed castor 1988
