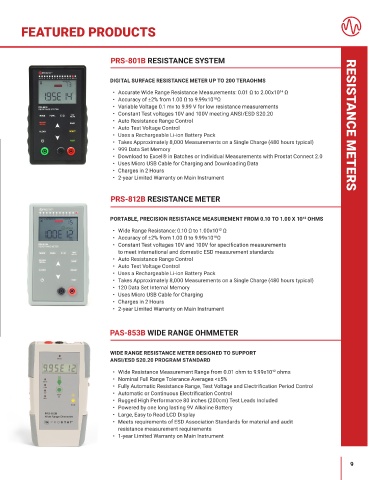

Page 9 - Prostat catalogue
P. 9

FEATURED PRODUCTS





                                      PRS-801B RESISTANCE SYSTEM


                                      DIGITAL SURFACE RESISTANCE METER UP TO 200 TERAOHMS

                                                                                                14
                                       •  Accurate Wide Range Resistance Measurements: 0.01 Ω to 2.00x10  Ω
                                       •  Accuracy of ±2% from 1.00 Ω to 9.99x10 Ω
                                                                         10
                                       •  Variable Voltage 0.1 mv to 9.99 V for low resistance measurements
                                       •  Constant Test voltages 10V and 100V meeting ANSI/ESD S20.20
                                       •  Auto Resistance Range Control
                                       •  Auto Test Voltage Control                                                   RESISTANCE METERS
                                       •  Uses a Rechargeable Li-ion Battery Pack
                                       •  Takes Approximately 8,000 Measurements on a Single Charge (480 hours typical)
                                       •  999 Data Set Memory
                                       •  Download to Excel® in Batches or Individual Measurements with Prostat Connect 2.0
                                       •  Uses Micro USB Cable for Charging and Downloading Data
                                       •  Charges in 2 Hours
                                       •  2-year Limited Warranty on Main Instrument


                                      PRS-812B RESISTANCE METER


                                      PORTABLE, PRECISION RESISTANCE MEASUREMENT FROM 0�10 TO 1�00 X 10  OHMS
                                                                                                       12
                                       •  Wide Range Resistance: 0.10 Ω to 1.00x10  Ω
                                                                           12
                                       •  Accuracy of ±2% from 1.00 Ω to 9.99x10 Ω
                                                                         10
                                       •  Constant Test voltages 10V and 100V for specification measurements
                                            to meet international and domestic ESD measurement standards
                                       •  Auto Resistance Range Control
                                       •  Auto Test Voltage Control
                                       •  Uses a Rechargeable Li-ion Battery Pack
                                       •  Takes Approximately 8,000 Measurements on a Single Charge (480 hours typical)
                                       •  120 Data Set Internal Memory
                                       •  Uses Micro USB Cable for Charging
                                       •  Charges in 2 Hours
                                       •  2-year Limited Warranty on Main Instrument



                                      PAS-853B WIDE RANGE OHMMETER



                                      WIDE RANGE RESISTANCE METER DESIGNED TO SUPPORT
                                      ANSI/ESD S20�20 PROGRAM STANDARD

                                       •  Wide Resistance Measurement Range from 0.01 ohm to 9.99x10  ohms
                                                                                             12
                                       •  Nominal Full Range Tolerance Averages <±5%
                                       •  Fully Automatic Resistance Range, Test Voltage and Electrification Period Control
                                       •  Automatic or Continuous Electrification Control
                                       •  Rugged High Performance 80 inches (200cm) Test Leads Included
                                       •  Powered by one long lasting 9V Alkaline Battery
                                       •  Large, Easy to Read LCD Display
                                       •  Meets requirements of ESD Association Standards for material and audit
                                            resistance measurement requirements
                                       •  1-year Limited Warranty on Main Instrument




 8                                                                                                                     9
   4   5   6   7   8   9   10   11   12   13   14
