Page 8 - Prostat catalogue

FEATURED PRODUCTS

PRS-801B RESISTANCE SYSTEM

DIGITAL SURFACE RESISTANCE METER UP TO 200 TERAOHMS

14
• Accurate Wide Range Resistance Measurements: 0.01 Ω to 2.00x10 Ω
• Accuracy of ±2% from 1.00 Ω to 9.99x10 Ω
10
• Variable Voltage 0.1 mv to 9.99 V for low resistance measurements
• Constant Test voltages 10V and 100V meeting ANSI/ESD S20.20
• Auto Resistance Range Control

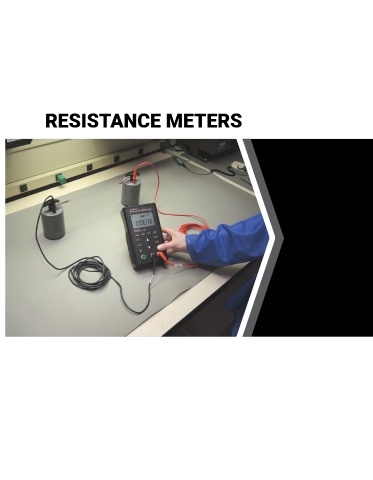

• Auto Test Voltage Control RESISTANCE METERS
• Uses a Rechargeable Li-ion Battery Pack
• Takes Approximately 8,000 Measurements on a Single Charge (480 hours typical)
• 999 Data Set Memory
• Download to Excel® in Batches or Individual Measurements with Prostat Connect 2.0
• Uses Micro USB Cable for Charging and Downloading Data
• Charges in 2 Hours
• 2-year Limited Warranty on Main Instrument

PRS-812B RESISTANCE METER

PORTABLE, PRECISION RESISTANCE MEASUREMENT FROM 0�10 TO 1�00 X 10 OHMS
12
• Wide Range Resistance: 0.10 Ω to 1.00x10 Ω
12
• Accuracy of ±2% from 1.00 Ω to 9.99x10 Ω
10
• Constant Test voltages 10V and 100V for specification measurements
to meet international and domestic ESD measurement standards
• Auto Resistance Range Control
• Auto Test Voltage Control
• Uses a Rechargeable Li-ion Battery Pack
• Takes Approximately 8,000 Measurements on a Single Charge (480 hours typical)
• 120 Data Set Internal Memory
• Uses Micro USB Cable for Charging
• Charges in 2 Hours
• 2-year Limited Warranty on Main Instrument

PAS-853B WIDE RANGE OHMMETER

WIDE RANGE RESISTANCE METER DESIGNED TO SUPPORT
ANSI/ESD S20�20 PROGRAM STANDARD

• Wide Resistance Measurement Range from 0.01 ohm to 9.99x10 ohms
12
• Nominal Full Range Tolerance Averages <±5%
• Fully Automatic Resistance Range, Test Voltage and Electrification Period Control
• Automatic or Continuous Electrification Control
• Rugged High Performance 80 inches (200cm) Test Leads Included
• Powered by one long lasting 9V Alkaline Battery
• Large, Easy to Read LCD Display
• Meets requirements of ESD Association Standards for material and audit
resistance measurement requirements
• 1-year Limited Warranty on Main Instrument

8 9
