Page 10 - Prostat catalogue

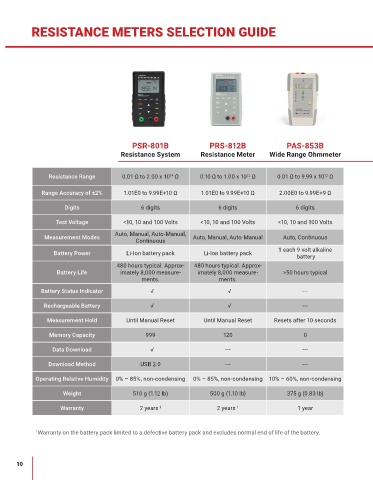

RESISTANCE METERS SELECTION GUIDE FEATURED PRODUCTS

PRS-801RM SURFACE RESISTANCE SYSTEM KIT

ACCURATELY MEASURES POINT-TO-POINT RESISTANCE AND RESISTANCE TO GROUND
• Perform Point-to-Point and Resistance to Ground Measurements from
0.01 Ω to 200 Tera ohms
• Accuracy of ±2% from 1.00 Ω to 9.99x10 Ω
10
• Measures in accordance with ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, RESISTANCE METERS
ANSI/ESD STM97.1 and others
• Constant Test voltages 10V and 100V meeting ANSI/ESD S20.20
PSR-801B PRS-812B PAS-853B • Operates using a Rechargeable Li-ion Battery Pack
• Takes Approximately 8,000 Measurements on a Single Charge (480 hours typical)
Resistance System Resistance Meter Wide Range Ohmmeter • Stores up to 999 Test Values Into Memory
• Compatible with Prostat Connect 2.0 for Downloading into Excel®
• Charging and Download via Standard Micro USB Cable
Resistance Range 0.01 Ω to 2.00 x 10 Ω 0.10 Ω to 1.00 x 10 Ω 0.01 Ω to 9.99 x 10 Ω • Includes 5lb Conductive Probes and Carrying Case
12
12
14
• Certificate of Calibration Traceable to NIST included
Range Accuracy of ±2% 1.01E0 to 9.99E+10 Ω 1.01E0 to 9.99E+10 Ω 2.00E0 to 9.99E+9 Ω • 2-year Limited Warranty on Main Instrument
Digits 6 digits 6 digits 6 digits PRS-812RM SURFACE RESISTANCE METER KIT

Test Voltage <10, 10 and 100 Volts <10, 10 and 100 Volts <10, 10 and 100 Volts
TEST ANTI-STATIC, STATIC DISSIPATIVE AND CONDUCTIVE SURFACES
Auto, Manual, Auto-Manual,
Measurement Modes Auto, Manual, Auto-Manual Auto, Continuous
Continuous • Surface Resistance Tester from 0.10 Ω to 1 Tera ohm
Battery Power Li-Ion battery pack Li-Ion battery pack 1 each 9 volt alkaline • Constant Voltages 10 volts and 100 volts
• Automatic Electrification Period
battery
480 hours typical. Approx- 480 hours typical. Approx- • Determines if a surface is Dissipative, Conductive, or Insulative
Battery Life imately 8,000 measure- imately 8,000 measure- >50 hours typical • Measures resistance point-to-point(Rtt) and resistance to ground (Rtg)
• Measures resistance of ESD Flooring, ESD Work surfaces and Packaging
ments� ments�
• Conforms to all ESD Association Standards for Resistive Characterization
Battery Status Indicator √ √ --- • Includes 2 each Surface Resistance Probes
• Packaged in a hard shell Carrying Case
Rechargeable Battery √ √ --- • Certificate of Calibration Traceable to NIST included
• 2-year Limited Warranty on Main Instrument
Measurement Hold Until Manual Reset Until Manual Reset Resets after 10 seconds

Memory Capacity 999 120 0
PAS-853BRM DIGITAL SURFACE RESISTANCE TEST KIT
Data Download √ --- ---
WIDE RANGE SURFACE RESISTANCE OHM METER KIT
Download Method USB 2�0 --- ---
• Surface Resistance Kit from 0.01 ohm to 9.99x10 ohms
12
Operating Relative Humidity 0% – 85%, non-condensing 0% – 85%, non-condensing 10% – 60%, non-condensing • Nominal Full Range Tolerance Averages <±5%
• Fully Automatic Resistance Range, Test Voltage and Electrification Period control
Weight 510 g (1.12 lb) 500 g (1.10 lb) 375 g (0.83 lb) • Determines if a surface is Dissipative, Conductive, or Insulative
• Measures resistance point-to-point(Rtt) and point-to-ground (Rtg)
Warranty 2 years 1 2 years 1 1 year • Measures resistance of Static Control Floors, ESD Work Surfaces and Packaging Material
• Conforms to all ESD Association Standards for Resistive Characterization
• Includes 2 each Conductive Rubber Electrodes
• Packaged in a hard shell Carrying Case
1 Warranty on the battery pack limited to a defective battery pack and excludes normal end of life of the battery. • Certificate of Calibration Traceable to NIST included
• 1-year Limited Warranty on Main Instrument

10 11
