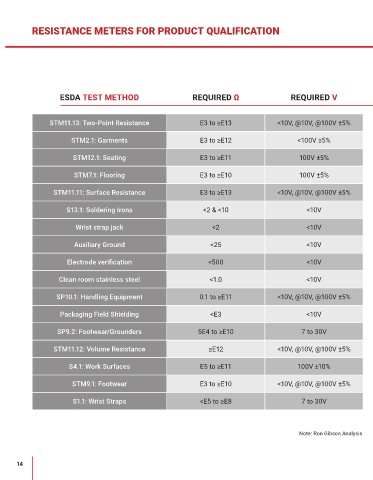

RESISTANCE METERS FOR PRODUCT QUALIFICATION
ESDA TEST METHOD REQUIRED Ω REQUIRED V PRS-801B PAS-853B PRS-812B METER A METER B METER C
STM11.13: Two-Point Resistance E3 to ≥E13 <10V, @10V, @100V ±5% √ √ √ --- --- --- RESISTANCE METERS
STM2.1: Garments E3 to ≥E12 <100V ±5% √ √ √ --- --- ---
STM12.1: Seating E3 to ≥E11 100V ±5% √ √ √ --- --- ---
STM7.1: Flooring E3 to ≥E10 100V ±5% √ √ √ --- --- ---
STM11.11: Surface Resistance E3 to ≥E13 <10V, @10V, @100V ±5% √ √ √ --- --- ---
S13.1: Soldering Irons <2 & <10 <10V √ √ √ --- --- ---
Wrist strap jack <2 <10V √ √ √ --- --- ---
Auxiliary Ground <25 <10V √ √ √ --- --- ---
Electrode verification <500 <10V √ √ √ --- --- ---
Clean room stainless steel <1.0 <10V √ √ √ --- --- ---
SP10.1: Handling Equipment 0.1 to ≥E11 <10V, @10V, @100V ±5% √ √ √ --- --- ---
Packaging Field Shielding <E3 <10V √ √ √ --- --- ---
SP9.2: Footwear/Grounders 5E4 to ≥E10 7 to 30V √ √ √ √ --- ---
STM11.12: Volume Resistance ≥E12 <10V, @10V, @100V ±5% √ √ √ √ --- ---
S4.1: Work Surfaces E5 to ≥E11 100V ±10% √ √ √ √ √ ---
STM9.1: Footwear E3 to ≥E10 <10V, @10V, @100V ±5% √ √ √ √ √ ---
S1.1: Wrist Straps <E5 to ≥E8 7 to 30V √ √ √ √ --- √
Note: Ron Gibson Analysis
