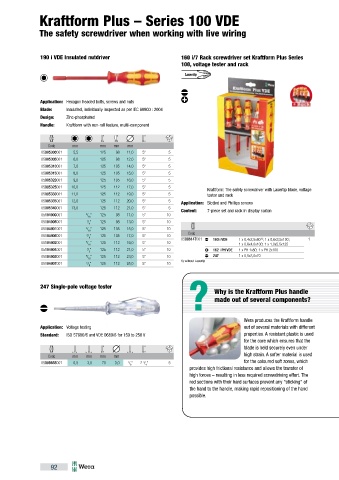

Kraftform Plus – Series 100 VDE

The safety screwdriver when working with live wiring

190 i VDE Insulated nutdriver 160 i/7 Rack screwdriver set Kraftform Plus Series
100, voltage tester and rack

Application: Hexagon headed bolts, screws and nuts
Blade: Insulated, individually inspected as per IEC 60900 : 2004
Design: Zinc-phosphated
Handle: Kraftform with non-roll feature, multi-component

Code mm mm mm mm
05005300001 5,5 125 98 11,0 5" 5
05005305001 6,0 125 98 12,0 5" 5
05005310001 7,0 125 105 14,0 5" 5
05005315001 8,0 125 105 15,0 5" 5
05005320001 9,0 125 105 16,0 5" 5
05005325001 10,0 125 112 17,0 5" 5
Kraftform: The safety screwdriver with Lasertip blade, voltage
05005330001 11,0 125 112 19,0 5" 5 tester and rack
05005335001 12,0 125 112 20,0 5" 5 Application: Slotted and Phillips screws
05005340001 13,0 125 112 21,0 5" 5
Content: 7-piece set and rack in display carton
05104900001 3 / " 125 98 11,0 5" 10
16
05104905001 1 / " 125 98 13,0 5" 10
4
05104901001 5 / " 125 105 15,0 5" 10
16 Code
05104906001 3 / " 125 105 17,0 5" 10 05006147001 160 i VDE 1 x 0,4x2,5x80 ; 1 x 0,6x3,5x100; 1
8
1)
05104902001 7 / " 125 112 19,0 5" 10 1 x 0,8x4,0x100; 1 x 1,0x5,5x125
16
05104904001 1 / " 125 112 21,0 5" 10 162 i PH VDE 1 x PH 1x80; 1 x PH 2x100
2
05104903001 9 / " 125 112 23,0 5" 10 247 1 x 0,5x3,0x70
16
05104907001 5 / " 125 112 25,0 5" 10 1) without Lasertip
8
? Why is the Kraftform Plus handle
247 Single-pole voltage tester
made out of several components?

Wera produces the Kraftform handle
Application: Voltage testing out of several materials with diff erent
Standard: ISO 57680/6 and VDE 0680/6 for 150 to 250 V properties. A resistant plastic is used
for the core which ensures that the
blade is held securely even under
high strain. A softer material is used
Code mm mm mm mm
3
05005655001 0,5 3,0 70 3,0 1 / " 2 / " 5 for the coloured soft zones, which
8 4
provides high frictional resistance and allows the transfer of
high forces – resulting in less required screwdriving eff ort. The
red sections with their hard surfaces prevent any "sticking" of
the hand to the handle, making rapid repositioning of the hand
possible.
