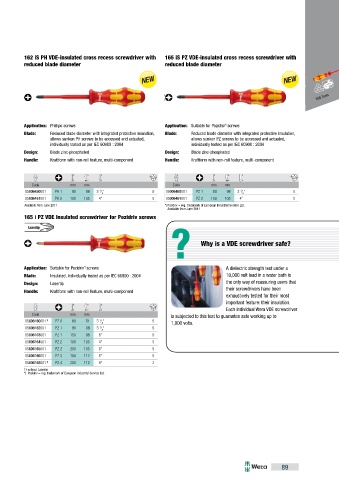

162 iS PH VDE-insulated cross recess screwdriver with 165 iS PZ VDE-insulated cross recess screwdriver with
reduced blade diameter reduced blade diameter

VDE Tools

Application: Phillips screws Application: Suitable for Pozidriv screws
*)
Blade: Reduced blade diameter with integrated protective insulation, Blade: Reduced blade diameter with integrated protective insulation,
allows sunken PH screws to be accessed and actuated, allows sunken PZ screws to be accessed and actuated,
individually tested as per IEC 60900 : 2004 individually tested as per IEC 60900 : 2004
Design: Blade zinc-phosphated Design: Blade zinc-phosphated
Handle: Kraftform with non-roll feature, multi-component Handle: Kraftform with non-roll feature, multi-component

Code mm mm Code mm mm
05006450001 PH 1 80 98 3 / " 5 05006460001 PZ 1 80 98 3 / " 5
1
1
8 8
05006451001 PH 2 100 105 4" 5 05006461001 PZ 2 100 105 4" 5
Available from June 2011 *) Pozidriv = reg. trademark of European Industrial Service Ltd.
Available from June 2011
165 i PZ VDE Insulated screwdriver for Pozidriv screws
? Why is a VDE screwdriver safe?

Application: Suitable for Pozidriv screws A dielectric strength test under a
*)
Blade: Insulated, individually tested as per IEC 60900 : 2004 10,000 volt load in a water bath is
Design: Lasertip the only way of reassuring users that
their screwdrivers have been
Handle: Kraftform with non-roll feature, multi-component
exhaustively tested for their most
important feature: their insulation.
Each individual Wera VDE screwdriver
Code mm mm is subjected to this test to guarantee safe working up to
05006160001 1) PZ 0 80 81 3 / " 5
1
8 1,000 volts.
05006162001 PZ 1 80 98 3 / " 5
1
8
05006163001 PZ 1 150 98 6" 5
05006164001 PZ 2 100 105 4" 5
05006165001 PZ 2 200 105 8" 5
05006166001 PZ 3 150 112 6" 5
05006168001 1) PZ 4 200 112 8" 2
1) without Lasertip
*) Pozidriv = reg. trademark of European Industrial Service Ltd.

89
