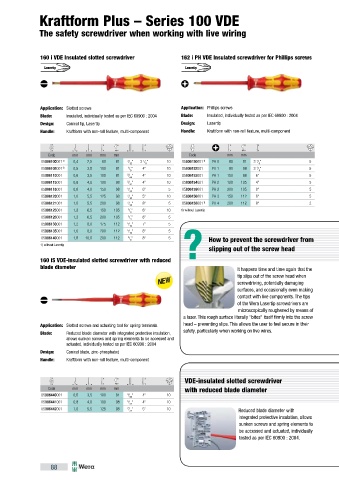

Page 92 - WERA katalógus

Kraftform Plus – Series 100 VDE

The safety screwdriver when working with live wiring

160 i VDE Insulated slotted screwdriver 162 i PH VDE Insulated screwdriver for Phillips screws

Application: Slotted screws Application: Phillips screws
Blade: Insulated, individually tested as per IEC 60900 : 2004 Blade: Insulated, individually tested as per IEC 60900 : 2004
Design: Conical tip, Lasertip Design: Lasertip
Handle: Kraftform with non-roll feature, multi-component Handle: Kraftform with non-roll feature, multi-component

Code mm mm mm mm Code mm mm
05006100001 1) 0,4 2,5 80 81 3 / " 3 / " 10 05006150001 1) PH 0 80 81 3 / " 5
1
1
8
32
8
05006105001 1) 0,5 3,0 100 81 1 / " 4" 10 05006152001 PH 1 80 98 3 / " 5
1
8
8
05006110001 0,6 3,5 100 81 9 / " 4" 10 05006153001 PH 1 150 98 6" 5
64
05006115001 0,8 4,0 100 98 5 / " 4" 10 05006154001 PH 2 100 105 4" 5
32
05006116001 0,8 4,0 150 98 5 / " 6" 5 05006159001 PH 2 200 105 8" 5
32
05006120001 1,0 5,5 125 98 7 / " 5" 10 05006156001 PH 3 150 112 6" 5
32
05006121001 1,0 5,5 200 98 7 / " 8" 5 05006158001 1) PH 4 200 112 8" 2
32
05006125001 1,2 6,5 150 105 1 / " 6" 10 1) without Lasertip
4
05006126001 1,2 6,5 200 105 1 / " 8" 5
4
05006130001 1,2 8,0 175 112 5 / " 7" 5
16
05006135001 1,6 8,0 200 112 5 / " 8" 5
16
05006140001 1,6 10,0 200 112 3 / " 8" 5 ? How to prevent the screwdriver from
8
1) without Lasertip slipping out of the screw head
160 iS VDE-insulated slotted screwdriver with reduced
blade diameter It happens time and time again that the
tip slips out of the screw head when
screwdriving, potentially damaging
surfaces, and occasionally even making
contact with live components. The tips
of the Wera Lasertip screwdrivers are
microscopically roughened by means of
a laser. This rough surface literally "bites" itself fi rmly into the screw
Application: Slotted screws and actuating tool for spring terminals head – preventing slips. This allows the user to feel secure in their
Blade: Reduced blade diameter with integrated protective insulation, safety, particularly when working on live wires.
allows sunken screws and spring elements to be accessed and
actuated, individually tested as per IEC 60900 : 2004
Design: Conical blade, zinc-phosphated
Handle: Kraftform with non-roll feature, multi-component
VDE-insulated slotted screwdriver

Code mm mm mm mm with reduced blade diameter
05006440001 0,6 3,5 100 81 9 / " 4" 10
64
05006441001 0,8 4,0 100 98 5 / " 4" 10
32
05006442001 1,0 5,5 125 98 7 / " 5" 10 Reduced blade diameter with
32
integrated protective insulation, allows
sunken screws and spring elements to
be accessed and actuated, individually
tested as per IEC 60900 : 2004.
