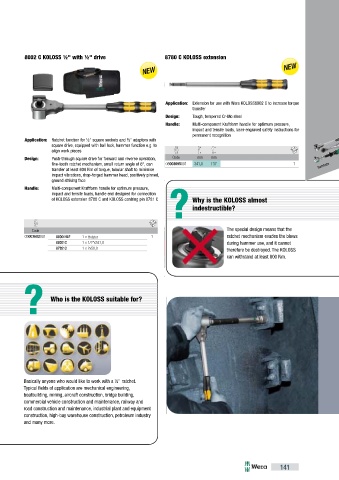

8002 C KOLOSS ½" with ½" drive 8780 C KOLOSS extension

Application: Extension for use with Wera KOLOSS8002 C to increase torque
transfer
Design: Tough, tempered Cr-Mo steel
Handle: Multi-component Kraftform handle for optimum pressure,
impact and tensile loads, laser-engraved safety instructions for
permanent recognition
Application: Ratchet function for ½" square sockets and ½" adaptors with
square drive, equipped with ball lock, hammer function e.g. to
align work pieces
Design: Push-through square drive for forward and reverse operation, Code mm mm
fi ne-tooth ratchet mechanism, small return angle of 6°, can 05003695001 341,0 137 1 Ratchets
transfer at least 600 Nm of torque, tubular shaft to minimise
impact vibrations, drop-forged hammer head, positively pinned,
ground striking face
?
Handle: Multi-component Kraftform handle for optimum pressure,
impact and tensile loads, handle end designed for connection
of KOLOSS extension 8780 C and KOLOSS centring pin 8781 C Why is the KOLOSS almost
indestructible?

Code The special design means that the
05003692001 8000 HLF 1 x Holster 1 ratchet mechanism evades the blows
8002 C 1 x 1/2"x341,0 during hammer use, and it cannot
8782 C 1 x 2x50,0 therefore be destroyed. The KOLOSS
can withstand at least 600 Nm.

? Who is the KOLOSS suitable for?

Basically anyone who would like to work with a ½" ratchet.
Typical fi elds of application are mechanical engineering,
boatbuilding, mining, aircraft construction, bridge building,
commercial vehicle construction and maintenance, railway and
road construction and maintenance, industrial plant and equipment
construction, high-bay warehouse construction, petroleum industry
and many more.
