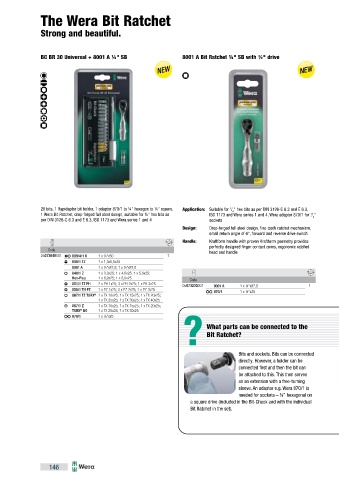

The Wera Bit Ratchet

Strong and beautiful.

BC BR 30 Universal + 8001 A ¼" SB 8001 A Bit Ratchet ¼" SB with ¼" drive

28 bits, 1 Rapidaptor bit holder, 1 adaptor 870/1 to ¼" hexagon to ¼" square, Application: Suitable for / " hex bits as per DIN 3126-C 6.3 and E 6.3,
1
4
1 Wera Bit Ratchet, drop-forged full steel design, suitable for ¼" hex bits as ISO 1173 and Wera series 1 and 4, Wera adaptor 870/1 for / "
1
4
per DIN 3126-C 6.3 and E 6.3, ISO 1173 and Wera series 1 and 4 sockets
Design: Drop-forged full steel design, fi ne-tooth ratchet mechanism,
small return angle of 6°, forward and reverse drive switch
Handle: Kraftform handle with proven Kraftform geometry provides
Code perfectly designed fi nger contact zones, ergonomic ratchet
05073640001 889/4/1 K 1 x ¼"x50 1 head and handle
800/1 TZ 1 x 1,0x5,5x25
8001 A 1 x ¼"x87,0; 1 x ¼"x87,0
840/1 Z 1 x 3,0x25; 1 x 4,0x25; 1 x 5,0x25;
Hex-Plus 1 x 6,0x25; 1 x 8,0x25 Code
851/1 TZ PH 2 x PH 1x25; 3 x PH 2x25; 1 x PH 3x25 05073230001 8001 A 1 x ¼"x87,0 1
855/1 TH PZ 1 x PZ 1x25; 3 x PZ 2x25; 1 x PZ 3x25 870/1 1 x ¼"x25
867/1 TZ TORX ® 1 x TX 10x25; 1 x TX 15x25; 1 x TX 20x25;
1 x TX 25x25; 1 x TX 30x25; 1 x TX 40x25
867/1 Z 1 x TX 10x25; 1 x TX 15x25; 1 x TX 20x25;
? What parts can be connected to the
TORX BO 1 x TX 25x25; 1 x TX 30x25
®
870/1 1 x ¼"x25
Bit Ratchet?

Bits and sockets. Bits can be connected
directly. However, a holder can be
connected fi rst and then the bit can
be attached to this. This then serves
as an extension with a free-turning
sleeve. An adaptor e.g. Wera 870/1 is
needed for sockets – ¼" hexagonal on
a square drive (included in the Bit-Check and with the individual
Bit Ratchet in the set).
