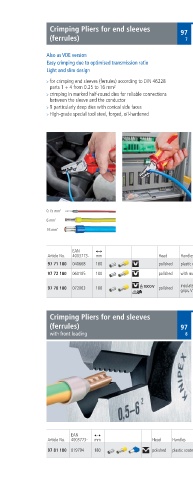

CRIMPING PLIERS

Crimping Pliers for end sleeves
97
(ferrules) 7

#NUQ CU 8&' XGTUKQP
Easy crimping due to optimised transmission ratio
97 71 180
Light and slim design

> for crimping end sleeves (ferrules) according to DIN 6228
parts 1 from 0 25 to 16 mm²
> crimping in marked half round dies for reliable connections
between the sleeve and the conductor
> 9 particularly deep dies with conical side faces
> High grade special tool steel, forged, oil hardened

97 72 180

97 78 180
0 75 mm ²

6 mm ²

16 mm ²

EAN Capacity
Article No 003773 mm Head Handles Applications mm² AWG g
97 71 180 0 0668 180 polished plastic coated End Sleeves (ferrules) 0 25 16 23 5 205

97 72 180 060185 180 polished with multi component grips End Sleeves (ferrules) 0 25 16 23 5 2 2

97 78 180 072003 180 polished insulated with multi component End Sleeves (ferrules) 0 25 16 23 5 25
grips, VDE tested

Crimping Pliers for end sleeves > for crimping end sleeves (ferrules) according to DIN 6228 parts 1
(ferrules) 97 in the range 0 5 to 6 mm²
with front loading 8 > ideal for work in confined areas, e g in narrow and deep switch boxes
> Special tool steel, forged, oil hardened

97 81 180

EAN Capacity
Article No 003773 mm Head Handles Applications mm² AWG g
97 81 180 01979 180 polished plastic coated End Sleeves (ferrules) 0 5 6 20 10 227

185
