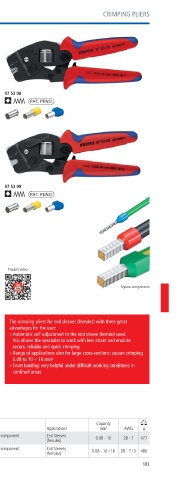

CRIMPING PLIERS

Self-Adjusting Crimping Pliers
for end sleeves (ferrules) 97
with front loading 53

> for crimping end sleeves (ferrules) according to DIN 6228 parts 1
> self adjusting adaptation to the desired end sleeve (ferrule) size:
no wrong crimps caused by using the wrong die
> front loading of the end sleeves (ferrules) into the tool
> repetitive, high crimping quality due to integral lock
(self releasing mechanism) 97 53 08
> crimping pressure has been set precisely (calibrated) in the
factory, re adjustable
> optimum transmission of force thanks to toggle lever for
fatigue reduced operation
> high operation comfort thanks to handy shape and low weight
> Chrome vanadium electric steel in special quality, oil hardened

97 53 08
compression from 0 08 10 mm² in one profile; end sleeves (ferrules) up to 2 5 mm²
can also be loaded parallely from the side;
suitable in particular for all twin end sleeves (ferrules) up to 2 x mm² or 2 x AWG 10
97 53 09
compression from 0 08 10 mm² and 16 mm² in one profile; with selector lever for
setting the crimping area either to 0 08 10 mm² or 16 mm²;
suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8 97 53 09

Product video

Square compression

Square crimping

6JG ETKORKPI RNKGTU HQT GPF UNGGXGU HGTTWNGU YKVJ VJTGG ITGCV
CFXCPVCIGU HQT VJG WUGT
> #WVQOCVKE UGNH CFLWUVOGPV VQ VJG GPF UNGGXG HGTTWNG WUGF
this allows the specialist to work with less strain and enables
secure, reliable and quick crimping
> Range of applications also for large cross-sections: square crimping
0.08 to 10 + 16 mm²
> (TQPV NQCFKPI XGT[ JGNRHWN WPFGT FKHHKEWNV YQTMKPI EQPFKVKQPU KP
confined areas

Front loading of end sleeves (ferrules) 97 53 08: lateral loading of end sleeves
e g in switchboards (ferrules) up to 2 5 mm² parallely from
the side e g in confined areas

EAN Capacity
Article No 003773 mm Pliers Handles Applications mm² AWG g
with multi component End Sleeves
97 53 08 0 0187 190 burnished 0 08 10 28 7 77
grips (ferrules)
with multi component End Sleeves
97 53 09 0 550 190 burnished 0 08 10 / 16 28 7 / 5 86
grips (ferrules)
183
