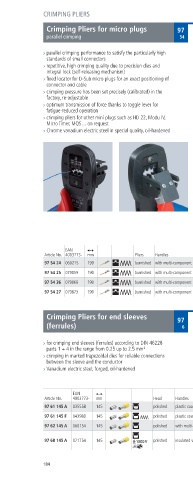

Page 345 - KNIPEX katalógus

CRIMPING PLIERS

Crimping Pliers for micro plugs 97
parallel crimping 54

> parallel crimping performance to satisfy the particularly high
standards of small connectors
> repetitive, high crimping quality due to precision dies and
integral lock (self releasing mechanism)
> fixed locator for D Sub micro plugs for an exact positioning of
connector and cable 97 54 24
> crimping pressure has been set precisely (calibrated) in the
factory, re adjustable
> optimum transmission of force thanks to toggle lever for
fatigue reduced operation
> crimping pliers for other mini plugs such as HD 22, Modu IV,
Micro Timer, MQS on request
> Chrome vanadium electric steel in special quality, oil hardened

97 54 25 97 54 26

97 54 27

EAN Capacity
Article No 003773 mm Pliers Handles Applications mm² AWG g
97 54 24 060215 190 burnished with multi component grips D Sub ; HD 20 ; HDE plug 0 03 0 56 32 20 305
97 54 25 079859 190 burnished with multi component grips Micro Fitv 20 / 22 2 / 26 30

97 54 26 079866 190 burnished with multi component grips Mini Fit ® 16 / 18 / 20 2
97 54 27 079873 190 burnished with multi component grips MQS plug 0 25 / 0 35 / 0 5

Crimping Pliers for end sleeves
97
(ferrules) 6

> for crimping end sleeves (ferrules) according to DIN 6228
parts 1 in the range from 0 25 up to 2 5 mm²
> crimping in marked trapezoidal dies for reliable connections
between the sleeve and the conductor 97 62 145 A
> Vanadium electric steel; forged, oil hardened

EAN Capacity
Article No 003773 mm Head Handles mm² AWG g
97 61 145 A 035558 1 5 polished plastic coated 0 25 2 5 23 13 1 0

97 61 145 F 0 3980 1 5 polished plastic coated 0 25 2 5 23 13 1 0

97 62 145 A 06015 1 5 polished with multi component grips 0 25 2 5 23 13 170

97 68 145 A 07175 1 5 polished insulated with multi component grips, VDE tested 0 25 2 5 23 13 175

184
