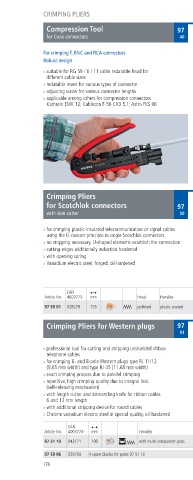

Page 329 - KNIPEX katalógus

CRIMPING PLIERS

Compression Tool 97
for Coax connectors 40

For crimping F, BNC and RCA connectors
Robust design
> suitable for RG 59 / 6 / 11 cable redatable head for
different cable sizes
97 40 20 SB
> redatable insert for various types of connector
> adjusting screw for various connector lengths
> applicable among others for compression connectors Size X after compression plugs
Kathrein EMK 12; Cablecon F 56 CX3 5 1; Astro FKS 06 F
17 2 mm
(RG 59/6)
$NC
30 37 mm
(RG 59/6)
RCA
22 29 mm
(59/6)
35 2 mm F (RG 11)

EAN
Article No 003773 mm Applications g
97 40 20 SB 077626 175 for F, $NC and RCA plugs 30

Crimping Pliers
for Scotchlok connectors 97
with side cutter 50

> for crimping plastic insulated telecommunication or signal cables
using the U contact principle in single Scotchlok connectors 97 50 01
> no stripping necessary, U shaped elements establish the connection
> cutting edges additionally induction hardened
> with opening spring
> Vanadium electric steel; forged, oil hardened

EAN Capacity
Article No 003773 mm Head Handles Applications Ø mm g
97 50 01 028239 155 polished plastic coated Scotchlok single connector 0 1 1 135

Crimping Pliers for Western plugs 97
51

> professional tool for cutting and stripping unshielded ribbon
telephone cables
> for crimping 6 and 8 pole Western plugs type RJ 11/12
(9 65 mm width) and type RJ 5 (11 68 mm width)
> exact crimping process due to parallel crimping
> repetitive, high crimping quality due to integral lock
(self releasing mechanism)
97 51 10
> with length cutter and dismantling knife for ribbon cables
6 and 12 mm length
> with additional stripping device for round cables
> Chrome vanadium electric steel in special quality, oil hardened

EAN
Article No 003773 mm Handles Capacity g
RJ 11/12 (6 poles) 9 65 mm
97 51 10 0 3171 190 with multi component grips RJ 5 (8 poles) 11 68 mm 3 0
97 59 06 029700 spare blades for poles 97 51 10
