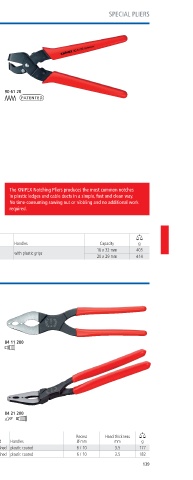

Page 256 - KNIPEX katalógus
P. 256
SPECIAL PLIERS
Notching Pliers 90
61
> special pliers for notching recesses into plastic ledges
and plastic casings for electric and sanitary installation
> notches can be enlarged by initial and final cut
> clean cut edges – no trimming activities needed
> easy handling
> with opening spring, opening limiter and locking lever
90 61 20
> pliers body: special tool steel, rolled, oil hardened 90 61 20
The KNIPEX Notching Pliers produces the most common notches
in plastic ledges and cable ducts in a simple, fast and clean way.
No time-consuming sawing out or nibbling and no additional work
required.
EAN
Article No 003773 mm Pliers Handles Capacity g
90 61 16 0519 7 250 16 x 32 mm 03
burnished with plastic grips
90 61 20 05195 250 20 x 29 mm 1
Cycle Pliers
DIN ISO 5743 84
> for very narrow screw connections
> Special tool steel, forged, oil hardened
84 11 200
straight head
84 11 200
84 21 200
20° angled head
84 21 200
20°
EAN Recess Head thickness
Article No 003773 mm Pliers Head Handles Ø mm mm g
84 11 200 051923 200 black atramentized polished plastic coated 6 / 10 3 5 177
84 21 200 051930 200 20° black atramentized polished plastic coated 6 / 10 3 5 182
139
