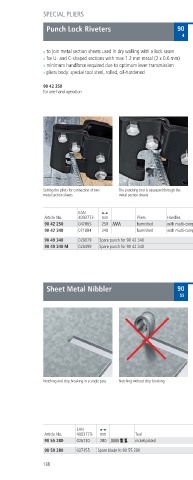

Page 253 - KNIPEX katalógus

SPECIAL PLIERS

Punch Lock Riveters 90
4

> to join metal section sheets used in dry walling with a lock seam
> for U and C shaped sections with max 1 2 mm metal (2 x 0 6 mm)
> minimum handforce required due to optimum lever transmission
> pliers body: special tool steel, rolled, oil hardened

90 42 250
for one hand operation 90 42 250

90 42 340

Setting the pliers for connection of two The punching tool is squeezed through the
metal section sheets metal section sheets

EAN
Article No 003773 mm Pliers Handles Capacity g
90 42 250 0 7865 250 burnished with multi component grips max 1 2 (2 x 0 6) 676
90 42 340 07188 3 0 burnished with multi component grips max 1 2 (2 x 0 6) 901
90 49 340 028079 Spare punch for 90 2 3 0
90 49 340 M 028 99 Spare punch for 90 2 3 0

Sheet Metal Nibbler 90 > for cutting iron, copper or aluminium sheet metal up to
55 max 1 2 mm thickness, plastic up to max 2 0 mm thickness
> materials are cut without deformation
> clean cut edges – no trimming activities needed
> with chip breaker
> easy handling
> cutting width: 2 7 mm
> tool body: special tool steel, rolled, oil hardened
> blades: special tool steel, oil hardened, interchangeable

Notching and chip breaking in a single pass Notching without chip breaking

90 55 280

EAN
Article No 003773 mm Tool Handles g
90 55 280 026730 280 nickel plated with multi component grips 61
90 59 280 027355 Spare blade fo 90 55 280

138
