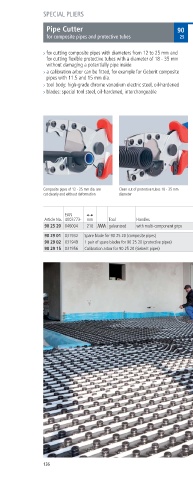

Page 249 - KNIPEX katalógus

SPECIAL PLIERS

Pipe Cutter 90
HQT EQORQUKVG RKRGU CPF RTQVGEVKXG VWDGU 25

> for cutting composite pipes with diameters from 12 to 25 mm and
for cutting flexible protective tubes with a diameter of 18 35 mm
without damaging a potentially pipe inside
> a calibration arbor can be fitted, for example for Geberit composite
pipes with 11 5 and 15 mm dia
> tool body: high grade chrome vanadium electric steel, oil hardened
> blades: special tool steel, oil hardened, interchangeable 90 25 20

Composite pipes of 12 25 mm dia are Clean cut of protective tubes 18 35 mm
cut cleanly and without deformation diameter

Cutting capacities Cutting capacities
EAN Composite pipes Protective tubes $lade length
Article No 003773 mm Tool Handles Ø mm Ø mm mm g
90 25 20 0 600 210 galvanized with multi component grips 12 25 18 35 25 332
90 29 01 031932 Spare blade for 90 25 20 (composite pipes)
90 29 02 0319 9 1 pair of spare blades for 90 25 20 (protective pipes)
90 29 15 031956 Calibration arbor for 90 25 20 (Geberit pipes)

136
