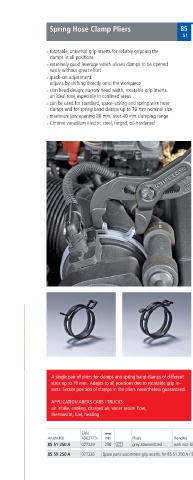

Page 259 - KNIPEX katalógus

SPECIAL PLIERS

Spring Hose Clamp Pliers 85
51

> rotatable, universal grip inserts for reliably gripping the
clamps in all positions
> extremely good leverage which allows clamps to be opened
easily without great effort
> quick set adjustment: 85 51 250 A
adjusts by shifting directly onto the workpiece
> slim head design; narrow head width, rotatable grip inserts:
Product video
an ideal tool, especially in confined areas
> can be used for standard, space saving and spring wire hose
clamps and for spring band clamps up to 70 mm nominal size
> maximum jaw opening 80 mm; over 0 mm clamping range
> Chrome vanadium electric steel, forged, oil hardened

6JG RTQXGP HGCVWTGU QH VJG
Cobra also apply to the
®
KNIPEX Spring Hose Clamp
Pliers
> less effort required due to
extremely good transmission
ratio
> first class guard to prevent
fingers being pinched
> reliable gripping with
hand friendly handle position
> fine adjustment ensures a
precise fit to suit the most
diverse clamp sizes
> opens at the touch of a button
> box joint design: high stability
due to the double guidance

A single pair of pliers for clamps and spring band clamps of different
sizes up to 70 mm. Adapts to all positions due to rotatable grip in-
UGTVU 5GEWTG RQUKVKQP QH ENCORU KP VJG RNKGTU PGXGTVJGNGUU IWCTCPVGGF

APPLICATION AREAS CARS / TRUCKS:
air intake, cooling, charged air, water return flow,
thermostat, fuel, heating

EAN Adjustment
Article No 003773 mm Pliers Handles Capacity positions g
85 51 250 A 077329 250 grey atramentized with non slip plastic coating max 70 mm 25 3 0
85 59 250 A 077336 Spare parts assortment grip inserts, for 85 51 250 A / 85 51 250 AF
141
