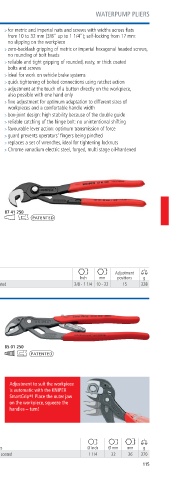

Page 208 - KNIPEX katalógus

WATERPUMP PLIERS

Multiple Slip Joint Spanner 87 > for metric and imperial nuts and screws with widths across flats
DIN ISO 5743 4 from 10 to 32 mm (3/8" up to 1 1/ "); self locking from 17 mm:
no slipping on the workpiece
> zero backlash gripping of metric or imperial hexagonal headed screws,
no rounding of bolt heads
> reliable and tight gripping of rounded, rusty, or thick coated
bolts and screws
> ideal for work on vehicle brake systems
> quick tightening of bolted connections using ratchet action
> adjustment at the touch of a button directly on the workpiece,
also possible with one hand only
> fine adjustment for optimum adaptation to different sizes of
workpieces and a comfortable handle width
> box joint design: high stability because of the double guide
Self locking: no slip on workpieces; less effort required
> reliable catching of the hinge bolt: no unintentional shifting
> favourable lever action: optimum transmission of force
> guard prevents operators‘ fingers being pinched
> replaces a set of wrenches, ideal for tightening locknuts
> Chrome vanadium electric steel, forged, multi stage oil hardened

Fine adjustment by pushing a button: In operation on rusted nut with rounded
fast and comfortable edges
87 41 250
6JG /WNVKRNG 5NKR ,QKPV 5RCPPGT EQODKPGU VJG EQPXGPKGPEG QH VJG
comfortable push-button adjustment on the workpiece and the func-
tion of an all-purpose tightening tool. Jaw gripping with zero back-
NCUJ RTGXGPVU UNKRRKPI QP VJG DQNV JGCF QT TQWPFKPI GFIGU 'XGP TWUV[
QT VJKEM EQCVGF DQNVGF EQPPGEVKQPU YJKEJ JCXG PQ UWTHCEGU ECRCDNG QH
DGKPI ITKRRGF TGNKCDN[ D[ C EQPXGPVKQPCN URCPPGT ECP DG OCPCIGF D[
the exceptionally powerful closing gripping jaws of this spanner.

EAN Adjustment
Article No 003773 mm Pliers Head Handles Inch mm positions g
87 41 250 05 566 250 grey atramentized polished plastic coated 3/8 1 1/ 10 32 15 328

KNIPEX SmartGrip ®
Water Pump Pliers with automatic adjustment
DIN ISO 8976 85

> ideal for frequent changeovers to workpieces of different sizes
> automatic adjustment per one hand operation both for right handed
and left handed use 85 01 250
> good access to the workpiece thanks to the slim dimensions in the
head and joint area and flush joint bolt
> self locking on pipes and nuts: no slipping on the workpiece
and low handforce required
> gripping surfaces with special hardened teeth, teeth hardness approx Adjustment to suit the workpiece
61 HRC: low wear and stable gripping
is automatic with the KNIPEX
> box joint design: high stability because of the double guide
SmartGrip ® ! Place the outer jaw
> guard prevents operators‘ fingers being pinched on the workpiece, squeeze the
> locking lever for space saving transport with reliable closed handles handles – turn!
> Chrome vanadium electric steel, forged, multi stage oil hardened

EAN
Article No 003773 mm Pliers Head Handles Ø Inch Ø mm mm g
85 01 250 06130 250 grey atramentized polished plastic coated 1 1/ 32 36 370
115
