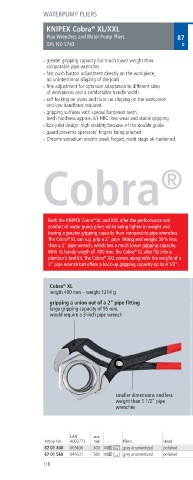

Page 213 - KNIPEX katalógus

WATERPUMP PLIERS

®
KNIPEX Cobra XL/XXL
Pipe Wrenches and Water Pump Pliers 87
DIN ISO 5743 0

> greater gripping capacity but much lower weight than
comparable pipe wrenches
> fast push button adjustment directly on the workpiece,
no unintentional slipping of the joint
> fine adjustment for optimum adaptation to different sizes
of workpieces and a comfortable handle width
> self locking on pipes and nuts: no slipping on the workpiece
and low handforce required
> gripping surfaces with special hardened teeth,
teeth hardness approx 61 HRC: low wear and stable gripping
> box joint design: high stability because of the double guide
> guard prevents operators‘ fingers being pinched
> Chrome vanadium electric steel, forged, multi stage oil hardened

Cobra ®

87 01 400

®
Both the KNIPEX Cobra XL and XXL offer the performance and
comfort of water pump pliers while being lighter in weight and
JCXKPI C ITGCVGT ITKRRKPI ECRCEKV[ VJCP EQORCTCDNG RKRG YTGPEJGU
®
The Cobra XL can e.g. grip a 2" pipe fitting and weighs 50 % less
than a 2" pipe wrench, which has a much lower gripping capacity.
®
With its handy length of 400 mm, the Cobra XL also fits into a
®
plumber‘s tool kit. The Cobra XXL comes along with the weight of a
87 01 560
2" pipe wrench but offers a back-up gripping capacity up to 4 1/2".

Cobra XL 2" pipe wrench
®
length 400 mm – weight 1214 g length 560 mm – weight 2670 g
gripping a union nut of a 2" pipe fitting
large gripping capacity of 95 mm,
would require a 3-inch pipe wrench

smaller dimensions and less gripping the 2" union nut exceeds
weight than 1 1/2" pipe the capacity of a 2" pipe wrench;
wrenches no confident working conditions

EAN Adjustment
Article No 003773 mm Pliers Head Handles Ø Inch Ø mm mm positions g
87 01 400 005636 00 grey atramentized polished plastic coated 3 1/2 90 95 27 121
87 01 560 0 321 560 grey atramentized polished plastic coated 1/2 115 120 20 2750
118
