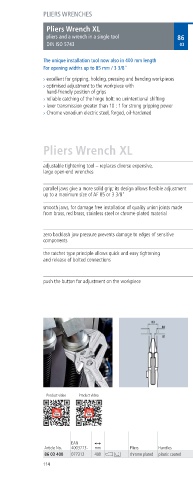

Page 205 - KNIPEX katalógus

PLIERS WRENCHES

Pliers Wrench XL
pliers and a wrench in a single tool 86
DIN ISO 5743 03

The unique installation tool now also in 400 mm length
For opening widths up to 85 mm / 3 3/8"

> excellent for gripping, holding, pressing and bending workpieces
> optimised adjustment to the workpiece with
hand friendly position of grips
> reliable catching of the hinge bolt: no unintentional shifting
> lever transmission greater than 10 : 1 for strong gripping power
> Chrome vanadium electric steel, forged, oil hardened

Pliers Wrench XL

adjustable tightening tool – replaces diverse expensive,
large open end wrenches

parallel jaws give a more solid grip; its design allows flexible adjustment
up to a maximum size of AF 85 or 3 3/8"

smooth jaws, for damage free installation of quality union joints made
from brass, red brass, stainless steel or chrome plated material

zero backlash jaw pressure prevents damage to edges of sensitive
components

the ratchet type principle allows quick and easy tightening
and release of bolted connections

push the button for adjustment on the workpiece

Pliers head = original size
Product video Product video

Dimensions
EAN Adjustment $1 $2 $3
Article No 003773 mm Pliers Handles Inch mm positions mm mm mm g
86 03 400 077312 00 chrome plated plastic coated 3 3/8 85 25 12 5 16 20 1 60
114
