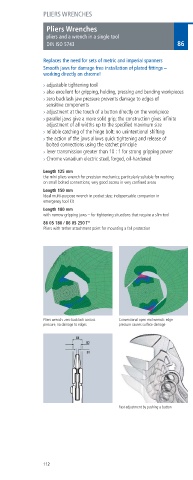

Page 201 - KNIPEX katalógus

PLIERS WRENCHES

Pliers Wrenches
pliers and a wrench in a single tool
DIN ISO 5743 86

86 03 125
Replaces the need for sets of metric and imperial spanners
Smooth jaws for damage free installation of plated fittings –
working directly on chrome!
> adjustable tightening tool
> also excellent for gripping, holding, pressing and bending workpieces
> zero backlash jaw pressure prevents damage to edges of 86 03 150
sensitive components
> adjustment at the touch of a button directly on the workpiece
> parallel jaws give a more solid grip; the construction gives infinite
adjustment of all widths up to the specified maximum size
> reliable catching of the hinge bolt: no unintentional shifting
> the action of the jaws allows quick tightening and release of 86 03 180
bolted connections using the ratchet principle

> lever transmission greater than 10 : 1 for strong gripping power
> Chrome vanadium electric steel, forged, oil hardened

Length 125 mm
the mini pliers wrench for precision mechanics; particularly suitable for working
on small bolted connections; very good access in very confined areas
Length 150 mm
ideal multi purpose wrench in pocket size; indispensable companion in 86 05 250
emergency tool kit
Length 180 mm
with narrow gripping jaws – for tightening situations that require a slim tool
86 05 180 / 86 05 250 T*
Pliers with tether attachment point for mounting a fall protection

86 05 250 T

86 03 300

Pliers wrench: zero backlash contact Conventional open end wrench: edge
pressure, no damage to edges pressure causes surface damage

The smooth jaws grip all parallel surfaces in the capacity range with
a high degree of pressure if necessary and open up almost unlimited
application possibilities for the pliers wrench: e.g. for tightening
NQEMPWVU GZGTVKPI RTGUUWTG VQ CEVKXCVG VJG CFJGUKXG RQYGT QH EQPVCEV
CFJGUKXGU GFIG DTGCMKPI KP VKNG YQTM UPCRRKPI ECDNG VKGU WVKNKUCVKQP
CU C UOCNN XKEG

Fast adjustment by pushing a button

112
