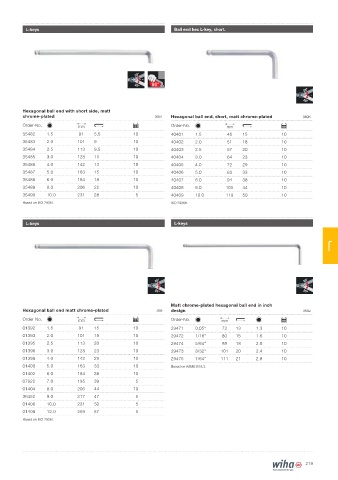

Page 219 - Wiha catalogue 2022

L-keys Ball end hex L-key, short.

95°

Hexagonal ball end with short side, matt
chrome-plated 369T Hexagonal ball end, short, matt chrome-plated 369K
Order-No. Order-No.
35482 1.5 91 5.5 10 40401 1.5 46 15 10
35483 2.0 101 9 10 40402 2.0 51 18 10
35484 2.5 113 9.5 10 40403 2.5 57 20 10
35485 3.0 128 11 10 40404 3.0 64 23 10
35486 4.0 142 13 10 40405 4.0 72 29 10
35487 5.0 163 15 10 40406 5.0 83 33 10
35488 6.0 184 18 10 40407 6.0 94 38 10
35489 8.0 206 22 10 40408 8.0 105 44 10
35490 10.0 231 28 5 40409 10.0 119 50 10
Based on ISO 2936L. ISO 2936K.

L-keys L-keys

Matt chrome-plated hexagonal ball end in inch
Hexagonal ball end matt chrome-plated 369 design 369Z
Order-No. Order-No.
01392 1.5 91 15 10 29471 0,05“ 72 13 1.3 10
01393 2.0 101 18 10 29472 1/16“ 80 15 1.6 10
01395 2.5 113 20 10 29474 5/64“ 88 18 2.0 10
01396 3.0 128 23 10 29473 3/32“ 101 20 2.4 10
01398 4.0 142 29 10 29475 7/64“ 111 21 2.8 10
01400 5.0 163 33 10 Based on ASME B18.3.
01402 6.0 184 38 10
07922 7.0 195 39 5
01404 8.0 206 44 10
36452 9.0 217 47 5
01406 10.0 231 50 5
01408 12.0 259 57 5
Based on ISO 2936L.

219
