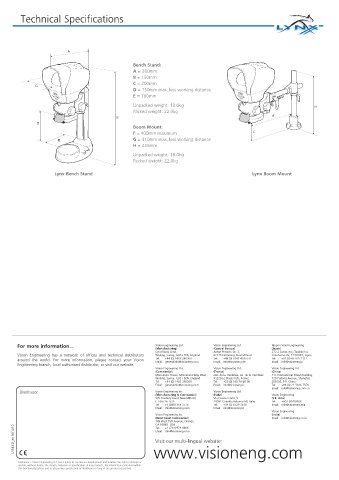

Technical Specifications

Bench Stand:
A = 280mm
B = 150mm
C = 200mm
D = 150mm max, less working distance
E = 760mm
Unpacked weight: 18.0kg
Packed weight: 22.0kg

Boom Mount:
F = 400mm maximum
G = 310mm max, less working distance
H = 435mm
Unpacked weight: 18.0kg
Packed weight: 22.0kg

Lynx Bench Stand Lynx Boom Mount
