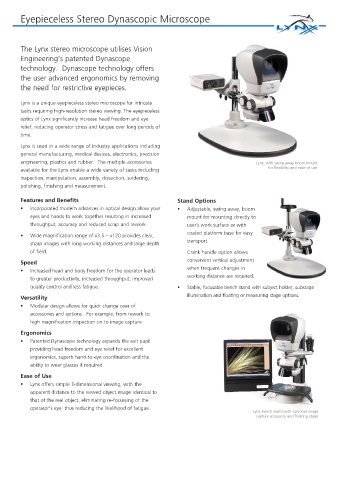

Eyepieceless Stereo Dynascopic Microscope

The Lynx stereo microscope utilises Vision
Engineering's patented Dynascope
technology. Dynascope technology offers
the user advanced ergonomics by removing
the need for restrictive eyepieces.

Lynx is a unique eyepieceless stereo microscope for intricate
tasks requiring high-resolution stereo viewing. The eyepieceless
optics of Lynx significantly increase head freedom and eye
relief, reducing operator stress and fatigue over long periods of
time.

Lynx is used in a wide range of industry applications including
general manufacturing, medical devices, electronics, precision
engineering, plastics and rubber. The multiple accessories Lynx, with swing away boom mount,
for flexibility and ease of use.
available for the Lynx enable a wide variety of tasks including
inspection, manipulation, assembly, dissection, soldering,
polishing, finishing and measurement.

Features and Benefits Stand Options
Incorporated modern advances in optical design allow your Adjustable, swing away, boom
eyes and hands to work together resulting in increased mount for mounting directly to
throughput, accuracy and reduced scrap and rework. user’s work surface or with
Wide magnification range of x3.5 – x120 provides clear, coated platform base for easy
transport.
sharp images with long working distances and large depth
of field. Crank handle option allows
convenient vertical adjustment
Speed
when frequent changes in
Increased head and body freedom for the operator leads
working distance are required.
to greater productivity, increased throughput, improved
quality control and less fatigue. Stable, focusable bench stand with subject holder, substage
illumination and floating or measuring stage options.
Versatility
Modular design allows for quick change over of
accessories and options. For example, from rework to
high magnification inspection on to image capture.
Ergonomics
Patented Dynascope technology expands the exit pupil
providing head freedom and eye relief for excellent
ergonomics, superb hand-to-eye coordination and the
ability to wear glasses if required.
Ease of Use
Lynx offers simple 3-dimensional viewing, with the
apparent distance to the viewed object image identical to
that of the real object, eliminating re-focussing of the
operator's eye; thus reducing the likelihood of fatigue.
Lynx bench stand with optional image
capture accessory and floating stage
