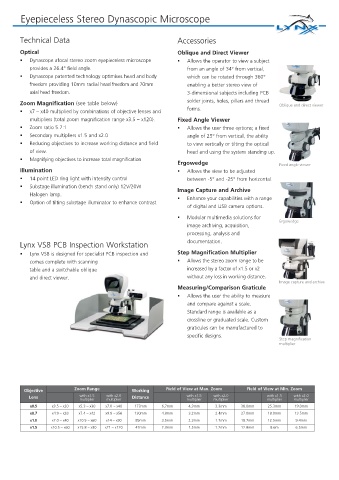

Eyepieceless Stereo Dynascopic Microscope
Technical Data Accessories
Optical Oblique and Direct Viewer
Dynascope afocal stereo zoom eyepieceless microscope Allows the operator to view a subject
provides a 26.4° field angle. from an angle of 34° from vertical,
Dynascope patented technology optimises head and body which can be rotated through 360°
freedom providing 10mm radial head freedom and 70mm enabling a better stereo view of
axial head freedom. 3-dimensional subjects including PCB
solder joints, holes, pillars and thread
Zoom Magnification (see table below) Oblique and direct viewer
x7 – x40 multiplied by combinations of objective lenses and forms.
multipliers (total zoom magnification range x3.5 – x120). Fixed Angle Viewer
Zoom ratio 5.7:1 Allows the user three options; a fixed
Secondary multipliers x1.5 and x2.0 angle of 25° from vertical, the ability
Reducing objectives to increase working distance and field to view vertically or tilting the optical
of view. head and using the system standing up.
Magnifying objectives to increase total magnification
Ergowedge Fixed angle viewer
Illumination Allows the view to be adjusted
14 point LED ring light with intensity control between -5° and -25° from horizontal.
Substage illumination (bench stand only) 12V/20W
Image Capture and Archive
Halogen lamp.
Enhance your capabilities with a range
Option of tilting substage illuminator to enhance contrast
of digital and USB camera options.
Modular multimedia solutions for
Ergowedge
image archiving, acquisition,
processing, analysis and
documentation.
Lynx VS8 PCB Inspection Workstation
Lynx VS8 is designed for specialist PCB inspection and Step Magnification Multiplier
comes complete with scanning Allows the stereo zoom range to be
table and a switchable oblique increased by a factor of x1.5 or x2
and direct viewer. without any loss in working distance.
Image capture and archive
Measuring/Comparison Graticule
Allows the user the ability to measure
and compare against a scale.
Standard range is available as a
crossline or graduated scale. Custom
graticules can be manufactured to
specific designs.
Step magnification
multiplier
Objective Zoom Range Working Field of View at Max. Zoom Field of View at Min. Zoom
with x1.5 with x2.0 with x1.5 with x2.0 with x1.5 with x2.0
Lens Distance
multiplier multiplier multiplier multiplier multiplier multiplier
x0.5 x3.5 – x20 x5.3 – x30 x7.0 – x40 177mm 6.7mm 4.3mm 3.3mm 38.0mm 25.3mm 19.0mm
x0.7 x4.9 – x28 x7.4 – x42 x9.8 – x56 130mm 4.8mm 3.2mm 2.4mm 27.0mm 18.0mm 13.5mm
x1.0 x7.0 – x40 x10.5 – x60 x14 – x80 85mm 3.5mm 2.3mm 1.7mm 18.7mm 12.5mm 9.4mm
x1.5 x10.5 – x60 x15.8 – x90 x21 – x120 47mm 2.3mm 1.5mm 1.2mm 12.9mm 8.6m 6.5mm
