Solder & Rework

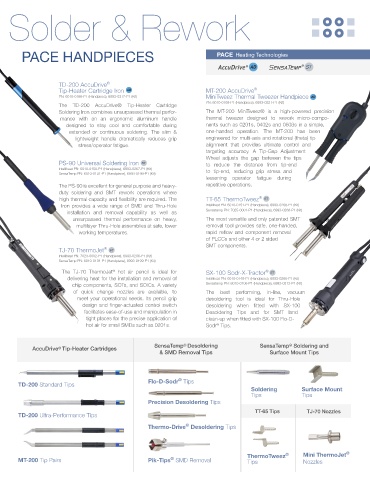

        PACE HANDPIECES                                                  PACE  Heating Technologies



                    TD-200 AccuDrive
                                    ®
                    Tip-Heater Cartridge Iron                        MT-200 AccuDrive ®
                    PN: 6010-0166-P1 (Handpiece), 6993-0317-P1 (Kit)  MiniTweez Thermal Tweezer Handpiece
                    The  TD-200  AccuDrive®  Tip-Heater  Cartridge   PN: 6010-0169-P1 (Handpiece), 6993-0321-P1 (Kit)
                    Soldering Iron combines unsurpassed thermal perfor-  The  MT-200  MiniTweez®  is  a  high-powered  precision
                     mance with an an ergonomic aluminum handle      thermal tweezer designed to rework micro-compo-
                       designed to stay cool and comfortable during   nents such as 0201s, 0402s and 0603s in a simple,
                        extended  or  continuous  soldering.  The  slim  &   one-handed  operation.  The  MT-200  has  been
                          lightweight handle dramatically reduces grip   engineered for multi-axis and rotational (theta) tip
                           stress/operator fatigue.                  alignment that provides ultimate control and
                                                                     targeting accuracy. A Tip-Gap Adjustment
                                                                     Wheel adjusts the gap between the tips
                    PS-90 Universal Soldering Iron                   to reduce the distance from tip-end
                    Intelliheat PN: 6010-0150-P1 (Handpiece), 6993-0267-P1 (Kit)  to tip-end, reducing grip stress and
                    SensaTemp PN: 6010-0131-P1 (Handpiece), 6993-0199-P1 (Kit)
                                                                     lessening operator fatigue during
                    The PS-90 is excellent for general purpose and heavy-  repetitive operations.
                    duty  soldering  and  SMT  rework  operations  where
                     high thermal capacity and flexibility are required. The   TT-65 ThermoTweez ®
                     Iron provides a wide range of SMD and Thru-Hole   Intelliheat PN: 6010-0151-P1 (Handpiece), 6993-0268-P1 (Kit)
                       installation and removal capability as well as   Sensatemp PN: 7025-0001-P1 (Handpiece), 6993-0268-P1 (Kit)
                         unsurpassed thermal performance on heavy,   The most versatile and only patented SMT
                          multilayer Thru-Hole assemblies at safe, lower   removal tool provides safe, one-handed,
                           working temperatures.                     rapid  reflow  and  component  removal
                                                                     of PLCCs and other 4 or 2 sided
                                                                     SMT components.
                    TJ-70 ThermoJet
                                   ®
                    Intelliheat PN: 7023-0002-P1 (Handpiece), 6993-0206-P1 (Kit)
                    SensaTemp PN: 6010-0131-P1 (Handpiece), 6993-0199-P1 (Kit)
                     The TJ-70 ThermoJet  hot air pencil is ideal for   SX-100 Sodr-X-Tractor ®
                                      ®
                       delivering heat for the installation and removal of   Intelliheat PN: 6010-0149-P1 (Handpiece), 6993-0266-P1 (Kit)
                         chip components, SOTs, and SOICs. A variety   Sensatemp PN: 6010-0106-P1 (Handpiece), 6993-0213-P1 (Kit)
                         of quick change nozzles are available, to   The best performing, in-line, vacuum
                          meet your operational needs. Its pencil grip   desoldering tool is ideal for Thru-Hole
                            design and finger-actuated control switch   desoldering  when  fitted  with  SX-100
                             facilitates ease-of-use and manipulation in   Desoldering  Tips  and  for  SMT  land
                             tight places for the precise application of   clean-up when fitted with SX-100 Flo-D-
                             hot air for small SMDs such as 0201s.   Sodr  Tips.
                                                                         ®


                                                                                                 ®
                                                              ®
            AccuDrive Tip-Heater Cartridges         SensaTemp Desoldering              SensaTemp  Soldering and
                    ®
                                                      & SMD Removal Tips                  Surface Mount Tips

                                                            ®
       TD-200 Standard Tips                       Flo-D-Sodr  Tips
                                                                                    Soldering        Surface Mount
                                                                                    Tips             Tips
                                                  Precision Desoldering Tips

       TD-200 Ultra-Performance Tips                                                 TT-65 Tips        TJ-70 Nozzles
                                                  Thermo-Drive  Desoldering Tips
                                                              ®



                                                                                   ThermoTweez       Mini ThermoJet
                                                                                                                    ®
                                                                                               ®
       MT-200 Tip Pairs                           Pik-Tips  SMD Removal            Tips              Nozzles
                                                         ®
