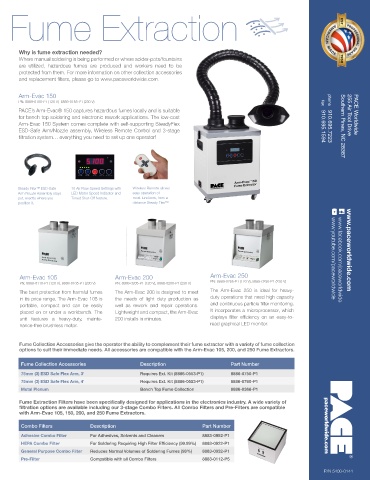

Page 2 - PACE Catalogue

Fume Extraction

Why is fume extraction needed?
Where manual soldering is being performed or where solder-pots/fountains
are utilized, hazardous fumes are produced and workers need to be
protected from them. For more information on other collection accessories
and replacement filters, please go to www.paceworldwide.com.

Arm-Evac 150
PN: 8889-0150-P1 (120 V) 8889-0155-P1 (230 V) fax phone
PACE’s Arm-Evac® 150 captures hazardous fumes locally and is suitable
for bench top soldering and electronic rework applications. The low-cost 255 Air Tool Drive PACE Worldwide
Arm-Evac 150 System comes complete with self-supporting SteadyFlex
ESD-Safe Arm/Nozzle assembly, Wireless Remote Control and 3-stage 910.695.1594 910.695.7223 Southern Pines, NC 28387
filtration system… everything you need to set up one operator!

Steady Flex™ ESD-Safe 10 Air Flow Speed Settings with Wireless Remote allows
Arm Nozzle Assembly stays LED Motor Speed Indicator and easy operation of
put, exactly where you Timed Shut-Off feature. most functions, from a
position it. distance Steady Flex™

Arm-Evac 105 Arm-Evac 200 Arm-Evac 250 www.youtube.com/paceworldwide www.facebook.com/paceworldwide www.paceworldwide.com
PN: 8888-0110-P1 (120 V), 8888-0105-P1 (230 V) PN: 8889-0205-P1 (120 V), 8886-0200-P1 (230 V) PN: 8889-0255-P1 (120 V), 8889-0250-P1 (230 V)
The best protection from harmful fumes The Arm-Evac 200 is designed to meet The Arm-Evac 250 is ideal for heavy-
in its price range. The Arm-Evac 105 is the needs of light duty production as duty operations that need high capacity
portable, compact and can be easily well as rework and repair operations. and continuous particle filter monitoring.
placed on or under a workbench. The Lightweight and compact, the Arm-Evac It incorporates a microprocessor, which
unit features a heavy-duty, mainte- 200 installs in minutes. displays filter efficiency on an easy-to-
nance-free brushless motor. read graphical LED monitor.

Fume Collection Accessories give the operator the ability to complement their fume extractor with a variety of fume collection
options to suit their immediate needs. All accessories are compatible with the Arm-Evac 105, 200, and 250 Fume Extractors.

Fume Collection Accessories Description Part Number

75mm (3) ESD Safe Flex Arm, 3’ Requires Ext. Kit (8886-0553-P1) 8886-0750-P1
75mm (3) ESD Safe Flex Arm, 4’ Requires Ext. Kit (8886-0553-P1) 8886-0760-P1
Metal Plenum Bench Top Fume Collection 8886-0366-P1
Fume Extraction Filters have been specifically designed for applications in the electronics industry. A wide variety of
filtration options are available including our 3-stage Combo Filters. All Combo Filters and Pre-Filters are compatible
with Arm-Evac 105, 150, 200, and 250 Fume Extractors.
Combo Filters Description Part Number

Adhesive Combo Filter For Adhesives, Solvents and Cleaners 8883-0952-P1
HEPA Combo Filter For Soldering Requiring High Filter Efficiency (99.99%) 8883-0922-P1
General Purpose Combo Filter Reduces Normal Volumes of Soldering Fumes (98%) 8883-0932-P1
Pre-Filter Compatible with all Combo Filters 8883-0112-P5
P/N 5400-0144
