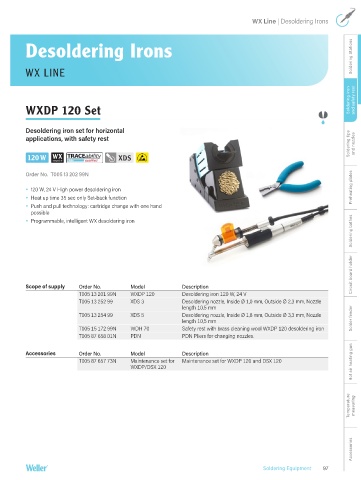

Page 97 - weller
P. 97
WX Line | Desoldering Irons
Desoldering Irons Soldering Stations
WX LINE
Soldering iron and safety rest
WXDP 120 Set
Desoldering iron set for horizontal
applications, with safety rest Soldering tips and nozzles
120 W XDS
Order No. T005 13 202 99N
120 W, 24 V High power desoldering iron Preheating plates
Heat up time 35 sec only Set-back function
Push and pull technology: cartridge change with one hand
possible
Soldering bathes
Programmable, intelligent WX desoldering iron
Circuit board holder
Scope of supply Order No. Model Description
T005 13 201 99N WXDP 120 Desoldering iron 120 W, 24 V
T005 13 252 99 XDS 3 Desoldering nozzle, Inside Ø 1,0 mm, Outside Ø 2,3 mm, Nozzle
length 10,5 mm
T005 13 254 99 XDS 5 Desoldering nozzle, Inside Ø 1,8 mm, Outside Ø 3,3 mm, Nozzle
length 10,5 mm Solder feeder
T005 15 172 99N WDH 70 Safety rest with brass cleaning wool WXDP 120 desoldering iron
T005 87 658 01N PDN PDN Pliers for changing nozzles.
Accessories Order No. Model Description
T005 87 657 73N Maintenance set for Maintenance set for WXDP 120 and DSX 120 Hot air heating gun
WXDP/DSX 120
Temperature measuring
Accessories
Soldering Equipment 97
