WX Line | Soldering Irons

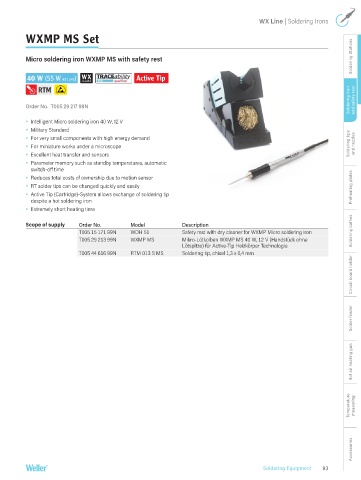

WXMP MS Set
Soldering Stations
Micro soldering iron WXMP MS with safety rest
40 W (55 W RT 11MS) Active Tip
Soldering iron and safety rest
RTM
Order No. T005 29 217 99N
Intelligent Micro soldering iron 40 W, 12 V
Military Standard
For very small components with high energy demand
For miniature works under a microscope Soldering tips and nozzles
Excellent heat transfer and sensors
Parameter memory such as standby temperatures, automatic
switch-off time
Reduces total costs of ownership due to motion sensor
RT solder tips can be changed quickly and easily Preheating plates
Active Tip (Cartridge)-System allows exchange of soldering tip
despite a hot soldering iron
Extremely short heating time
Scope of supply Order No. Model Description
T005 15 171 99N WDH 51 Safety rest with dry cleaner for WXMP Micro soldering iron Soldering bathes
T005 29 213 99N WXMP MS Mikro-Lötkolben WXMP MS 40 W, 12 V (Handstück ohne
Lötspitze) für Active-Tip Heizkörper Technologie
T005 44 616 99N RTM 013 S MS Soldering tip, chisel 1,3 x 0,4 mm
Circuit board holder
Solder feeder
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 93
