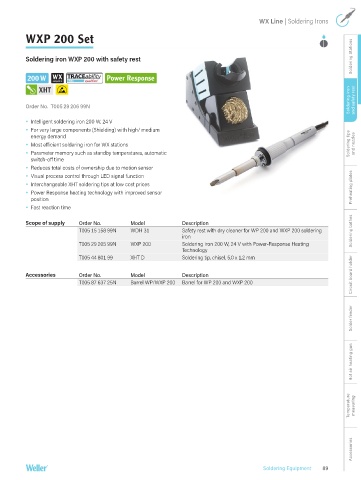

Page 89 - weller
P. 89
WX Line | Soldering Irons
WXP 200 Set
Soldering Stations
Soldering iron WXP 200 with safety rest
200 W Power Response
Soldering iron and safety rest
XHT
Order No. T005 29 206 99N
Intelligent soldering iron 200 W, 24 V
For very large components (Shielding) with high/ medium
energy demand
Most efficient soldering iron for WX stations Soldering tips and nozzles
Parameter memory such as standby temperatures, automatic
switch-off time
Reduces total costs of ownership due to motion sensor
Visual process control through LED signal function
Interchangeable XHT soldering tips at low cost prices
Power Response heating technology with improved sensor Preheating plates
position
Fast reaction time
Scope of supply Order No. Model Description
T005 15 158 99N WDH 31 Safety rest with dry cleaner for WP 200 and WXP 200 soldering Soldering bathes
iron
T005 29 205 99N WXP 200 Soldering iron 200 W, 24 V with Power-Response Heating
Technology
T005 44 801 99 XHT D Soldering tip, chisel, 5,0 x 1,2 mm
Circuit board holder
Accessories Order No. Model Description
T005 87 637 25N Barrel WP/WXP 200 Barrel for WP 200 and WXP 200
Solder feeder
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 89
