WX Line | Soldering Irons

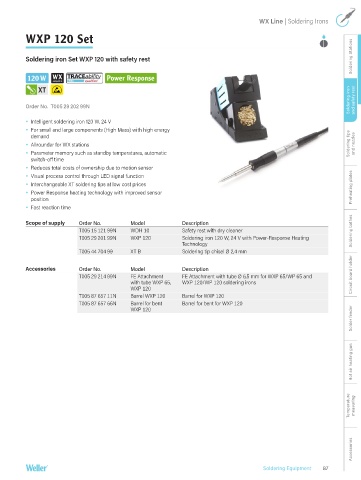

WXP 120 Set
Soldering Stations
Soldering iron Set WXP 120 with safety rest
120 W Power Response
Soldering iron and safety rest
XT
Order No. T005 29 202 99N
Intelligent soldering iron 120 W, 24 V
For small and large components (High Mass) with high energy
demand
Allrounder for WX stations Soldering tips and nozzles
Parameter memory such as standby temperatures, automatic
switch-off time
Reduces total costs of ownership due to motion sensor
Visual process control through LED signal function
Interchangeable XT soldering tips at low cost prices
Power Response heating technology with improved sensor Preheating plates
position
Fast reaction time
Scope of supply Order No. Model Description
T005 15 121 99N WDH 10 Safety rest with dry cleaner Soldering bathes
T005 29 201 99N WXP 120 Soldering iron 120 W, 24 V with Power-Response Heating
Technology
T005 44 704 99 XT B Soldering tip chisel Ø 2,4 mm
Accessories Order No. Model Description
T005 29 214 99N FE Attachment FE Attachment with tube Ø 6,5 mm for WXP 65/WP 65 and Circuit board holder
with tube WXP 65, WXP 120/WP 120 soldering irons
WXP 120
T005 87 657 11N Barrel WXP 120 Barrel for WXP 120
T005 87 657 66N Barrel for bent Barrel for bent for WXP 120
Solder feeder
WXP 120
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 87
