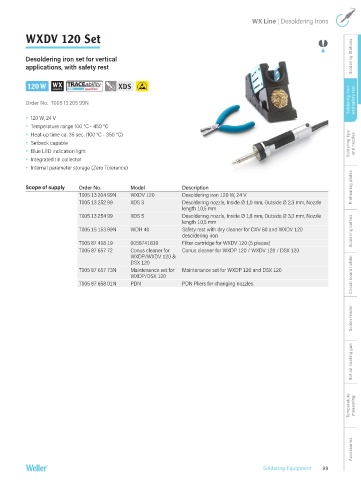

WX Line | Desoldering Irons
WXDV 120 Set
Desoldering iron set for vertical Soldering Stations
applications, with safety rest
120 W XDS
Soldering iron and safety rest
Order No. T005 13 205 99N
120 W, 24 V
Temperature range 100 °C - 450 °C
Heat-up time ca. 35 sec. (100 °C - 350 °C)
Setback capable Soldering tips and nozzles
Blue LED indication light
Integrated tin collector
Internal parameter storage (Zero Tolerance)
Scope of supply Order No. Model Description Preheating plates
T005 13 204 99N WXDV 120 Desoldering iron 120 W, 24 V
T005 13 252 99 XDS 3 Desoldering nozzle, Inside Ø 1,0 mm, Outside Ø 2,3 mm, Nozzle
length 10,5 mm
T005 13 254 99 XDS 5 Desoldering nozzle, Inside Ø 1,8 mm, Outside Ø 3,3 mm, Nozzle
length 10,5 mm
T005 15 153 99N WDH 40 Safety rest with dry cleaner for DXV 80 and WXDV 120 Soldering bathes
desoldering iron
T005 87 418 19 0058741819 Filter cartridge for WXDV 120 (5 pieces)
T005 87 657 72 Conus cleaner for Conus cleaner for WXDP 120 / WXDV 120 / DSX 120
WXDP/WXDV 120 &
DSX 120
T005 87 657 73N Maintenance set for Maintenance set for WXDP 120 and DSX 120
WXDP/DSX 120 Circuit board holder
T005 87 658 01N PDN PDN Pliers for changing nozzles.
