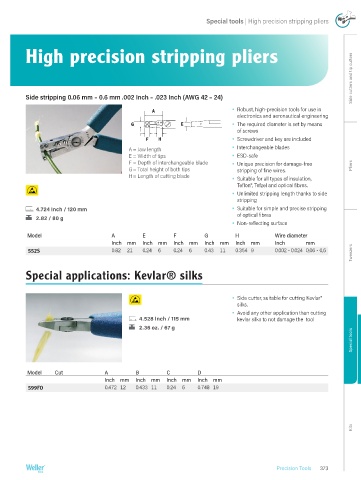

P. 373
Special tools | High precision stripping pliers
High precision stripping pliers
Side cutters and tip cutters
Side stripping 0.06 mm – 0.6 mm .002 Inch – .023 Inch (AWG 42 – 24)
Robust, high-precision tools for use in
electronics and aeronautical engineering
The required diameter is set by means
of screws
Screwdriver and key are included
A = Jaw length Interchangeable blades
E = Width of tips ESD-safe
F = Depth of interchangeable blade Unique precision for damage-free
G = Total height of both tips stripping of fine wires. Pliers
H = Length of cutting blade Suitable for all types of insulation,
Teflon®, Tefzel and optical fibres.
Unlimited stripping length thanks to side
stripping
4.724 Inch / 120 mm Suitable for simple and precise stripping
2.82 / 80 g of optical fibres
Non-reflecting surface
Model A E F G H Wire diameter
Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
Tweezers
552S 0.82 21 0.24 6 0.24 6 0.43 11 0.354 9 0.002 - 0.024 0,06 - 0,6
Special applications: Kevlar® silks
Side cutter, suitable for cutting Kevlar®
silks.
Avoid any other application than cutting
4.528 Inch / 115 mm kevlar silks to not damage the tool
2.36 oz. / 67 g
Special tools
Model Cut A B C D
Inch mm Inch mm Inch mm Inch mm
599FO 0.472 12 0.433 11 0.24 6 0.748 19
Kits
Precision Tools 373
