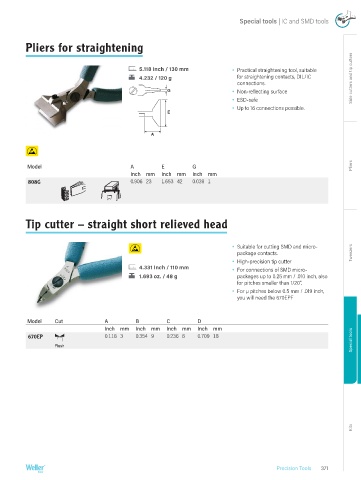

P. 371
Special tools | IC and SMD tools
Pliers for straightening
5.118 Inch / 130 mm Practical straightening tool, suitable
4.232 / 120 g for straightening contacts, DIL/IC Side cutters and tip cutters
connections.
Non-reflecting surface
ESD-safe
Up to 16 connections possible.
Model A E G Pliers
Inch mm Inch mm Inch mm
808G 0.906 23 1.653 42 0.039 1
Tip cutter – straight short relieved head
Suitable for cutting SMD and micro-
package contacts. Tweezers
High-precision tip cutter
4.331 Inch / 110 mm For connections of SMD micro-
1.693 oz. / 48 g packages up to 0.25 mm / .010 inch, also
for pitches smaller than 1/20".
For µ pitches below 0.5 mm / .019 inch,
you will need the 670EPF
Model Cut A B C D
Inch mm Inch mm Inch mm Inch mm
670EP 0.118 3 0.354 9 0.236 6 0.709 18 Special tools
Flush
Kits
Precision Tools 371
