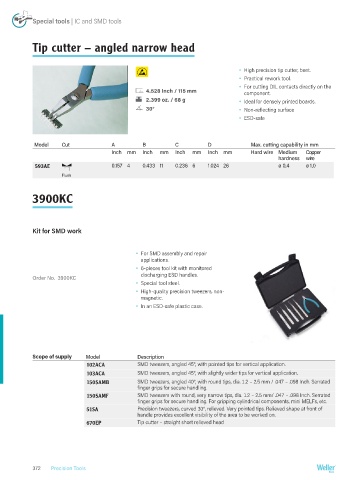

P. 372
Special tools | IC and SMD tools
Tip cutter – angled narrow head
High precision tip cutter, bent.
Practical rework tool.
For cutting DIL contacts directly on the
4.528 Inch / 115 mm component.
2.399 oz. / 68 g Ideal for densely printed boards.
30° Non-reflecting surface
ESD-safe
Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
593AE 0.157 4 0.433 11 0.236 6 1.024 26 ø 0,4 ø 1,0
Flush
3900KC
Kit for SMD work
For SMD assembly and repair
applications.
6-pieces tool kit with monitored
discharging ESD handles.
Order No. 3900KC
Special tool steel.
High-quality precision tweezers, non-
magnetic.
In an ESD-safe plastic case.
Scope of supply Model Description
102ACA SMD tweezers, angled 45°, with pointed tips for vertical application.
103ACA SMD tweezers, angled 45°, with slightly wider tips for vertical application.
150SAMB SMD tweezers, angled 40°, with round tips, dia. 1.2 – 2.5 mm / .047 – .098 Inch. Serrated
finger grips for secure handling.
150SAMF SMD tweezers with round, very narrow tips, dia. 1.2 – 2.5 mm/ .047 – .098 Inch. Serrated
finger grips for secure handling. For gripping cylindrical components, mini MELFs, etc.
51SA Precision tweezers, curved 30°, relieved. Very pointed tips. Relieved shape at front of
handle provides excellent visibility of the area to be worked on.
670EP Tip cutter – straight short relieved head
372 Precision Tools
