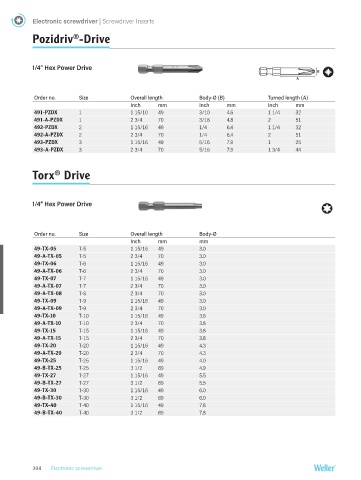

Page 304 - weller

Electronic screwdriver | Screwdriver Inserts

Pozidriv -Drive
®

1/4“ Hex Power Drive

Order no. Size Overall length Body-Ø (B) Turned length (A)
Inch mm Inch mm Inch mm
491-PZDX 1 1 15/10 49 3/10 4.6 1 1/4 32
491-A-PZDX 1 2 3/4 70 3/16 4.8 2 51
492-PZDX 2 1 15/16 49 1/4 6.4 1 1/4 32
492-A-PZDX 2 2 3/4 70 1/4 6.4 2 51
493-PZDX 3 1 15/16 49 5/16 7.9 1 25
493-A-PZDX 3 2 3/4 70 5/16 7.9 1 3/4 44

Torx Drive
®

1/4" Hex Power Drive

Order no. Size Overall length Body-Ø
Inch mm mm
49-TX-05 T-5 1 15/16 49 3.0
49-A-TX-05 T-5 2 3/4 70 3.0
49-TX-06 T-6 1 15/16 49 3.0
49-A-TX-06 T-6 2 3/4 70 3.0
49-TX-07 T-7 1 15/16 49 3.0
49-A-TX-07 T-7 2 3/4 70 3.0
49-A-TX-08 T-8 2 3/4 70 3.0
49-TX-09 T-9 1 15/16 49 3.0
49-A-TX-09 T-9 2 3/4 70 3.0
49-TX-10 T-10 1 15/16 49 3.8
49-A-TX-10 T-10 2 3/4 70 3.8
49-TX-15 T-15 1 15/16 49 3.8
49-A-TX-15 T-15 2 3/4 70 3.8
49-TX-20 T-20 1 15/16 49 4.3
49-A-TX-20 T-20 2 3/4 70 4.3
49-TX-25 T-25 1 15/16 49 4.0
49-B-TX-25 T-25 3 1/2 89 4.9
49-TX-27 T-27 1 15/16 49 5.5
49-B-TX-27 T-27 3 1/2 89 5.5
49-TX-30 T-30 1 15/16 49 6.0
49-B-TX-30 T-30 3 1/2 89 6.0
49-TX-40 T-40 1 15/16 49 7.8
49-B-TX-40 T-40 3 1/2 89 7.8

304 Electronic screwdriver
