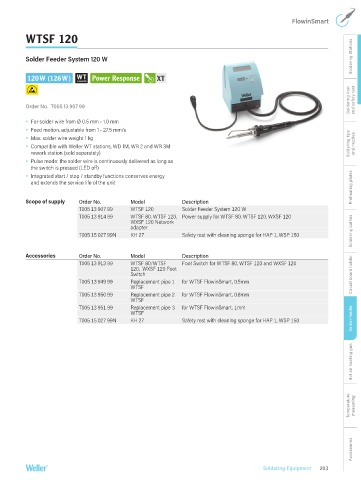

Page 203 - weller
P. 203
FlowinSmart
WTSF 120
Soldering Stations
Solder Feeder System 120 W
120W (126W) Power Response XT
Soldering iron and safety rest
Order No. T005 13 907 99
For solder wire from Ø 0.5 mm - 1.0 mm
Feed motion, adjustable from 1 - 27.5 mm/s
Max. solder wire weight 1 kg
Compatible with Weller WT stations, WD 1M, WR 2 and WR 3M Soldering tips and nozzles
rework station (sold separately)
Pulse mode: the solder wire is continuously delivered as long as
the switch is pressed (LED off)
Integrated start / stop / standby functions conserves energy
and extends the service life of the unit Preheating plates
Scope of supply Order No. Model Description
T005 13 907 99 WTSF 120 Solder Feeder System 120 W
T005 13 914 99 WTSF 80, WTSF 120, Power supply for WTSF 80, WTSF 120, WXSF 120
WXSF 120 Network
adapter
T005 15 027 99N KH 27 Safety rest with cleaning sponge for HAP 1, WSP 150 Soldering bathes
Accessories Order No. Model Description
T005 13 913 99 WTSF 80/WTSF Foot Switch for WTSF 80, WTSF 120 and WXSF 120
120, WXSF 120 Foot
Switch Circuit board holder
T005 13 949 99 Replacement pipe 1 for WTSF FlowinSmart, 0.5mm
WTSF
T005 13 950 99 Replacement pipe 2 for WTSF FlowinSmart, 0.8mm
WTSF
T005 13 951 99 Replacement pipe 3 for WTSF FlowinSmart, 1mm
WTSF
T005 15 027 99N KH 27 Safety rest with cleaning sponge for HAP 1, WSP 150 Solder feeder
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 203
