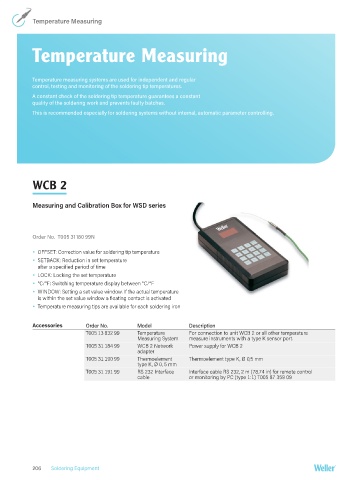

Soldering Equipment
Temperature Measuring
Temperature Measuring
Temperature measuring systems are used for independent and regular
control, testing and monitoring of the soldering tip temperatures.
A constant check of the soldering tip temperature guarantees a constant
quality of the soldering work and prevents faulty batches.
This is recommended especially for soldering systems without internal, automatic parameter controlling.
WCB 2
Measuring and Calibration Box for WSD series
Order No. T005 31 180 99N
OFFSET: Correction value for soldering tip temperature
SETBACK: Reduction in set temperature
after a specified period of time
LOCK: Locking the set temperature
°C/°F: Switching temperature display between °C/°F
WINDOW: Setting a set value window. If the actual temperature
is within the set value window a floating contact is activated
Temperature measuring tips are available for each soldering iron
Accessories Order No. Model Description
T005 13 832 99 Temperature For connection to unit WCB 2 or all other temperature
Measuring System measure instruments with a type K sensor port.
T005 31 184 99 WCB 2 Network Power supply for WCB 2
adapter
T005 31 190 99 Thermoelement Thermoelement type K, Ø 0,5 mm
type K, Ø 0, 5 mm
T005 31 191 99 RS 232 Interface Interface cable RS 232, 2 m (78.74 in) for remote control
cable or monitoring by PC (type 1:1) T005 87 359 09
