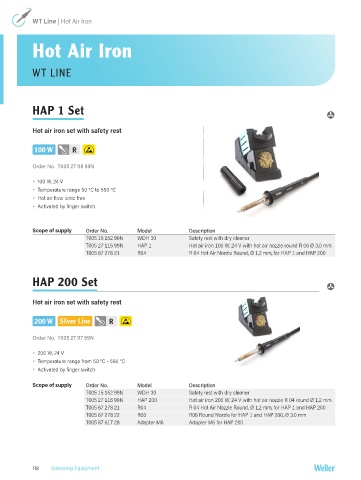

Page 118 - weller
P. 118
WT Line | Hot Air Iron
Hot Air Iron
WT LINE
HAP 1 Set
Hot air iron set with safety rest
100 W R
Order No. T005 27 118 99N
100 W, 24 V
Temperature range 50 °C to 550 °C
Hot air flow ionic free
Activated by finger switch
Scope of supply Order No. Model Description
T005 15 152 99N WDH 30 Safety rest with dry cleaner
T005 27 115 99N HAP 1 Hot air iron 100 W, 24 V with hot air nozzle round R 06 Ø 3,0 mm
T005 87 278 21 R04 R 04 Hot Air Nozzle Round, Ø 1,2 mm, for HAP 1 and HAP 200
HAP 200 Set
Hot air iron set with safety rest
200 W Silver Line R
Order No. T005 27 117 99N
200 W, 24 V
Temperature range from 50 °C - 550 °C
Activated by finger switch
Scope of supply Order No. Model Description
T005 15 152 99N WDH 30 Safety rest with dry cleaner
T005 27 116 99N HAP 200 Hot air iron 200 W, 24 V with hot air nozzle R 04 round Ø 1,2 mm
T005 87 278 21 R04 R 04 Hot Air Nozzle Round, Ø 1,2 mm, for HAP 1 and HAP 200
T005 87 278 22 R06 R06 Round Nozzle for HAP 1 and HAP 200, Ø 3.0 mm
T005 87 617 28 Adapter M6 Adapter M6 for HAP 200
118 Soldering Equipment
