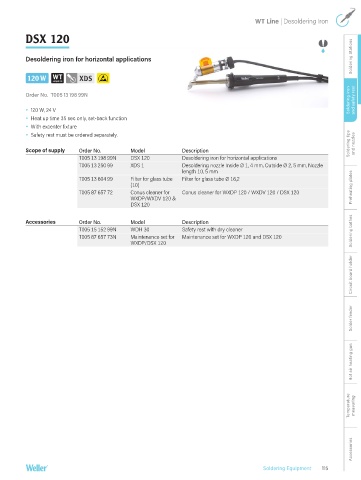

Page 115 - weller
P. 115
WT Line | Desoldering Iron
DSX 120
Soldering Stations
Desoldering iron for horizontal applications
120 W XDS
Soldering iron and safety rest
Order No. T005 13 198 99N
120 W, 24 V
Heat up time 35 sec only, set-back function
With excenter fixture
Safety rest must be ordered separately.
Scope of supply Order No. Model Description Soldering tips and nozzles
T005 13 198 99N DSX 120 Desoldering iron for horizontal applications
T005 13 250 99 XDS 1 Desoldering nozzle Inside Ø 1, 4 mm, Outside Ø 2, 5 mm, Nozzle
length 10, 5 mm
T005 13 604 99 Filter for glass tube Filter for glass tube Ø 16,2
(10)
T005 87 657 72 Conus cleaner for Conus cleaner for WXDP 120 / WXDV 120 / DSX 120 Preheating plates
WXDP/WXDV 120 &
DSX 120
Accessories Order No. Model Description
T005 15 152 99N WDH 30 Safety rest with dry cleaner Soldering bathes
T005 87 657 73N Maintenance set for Maintenance set for WXDP 120 and DSX 120
WXDP/DSX 120
