P. 117

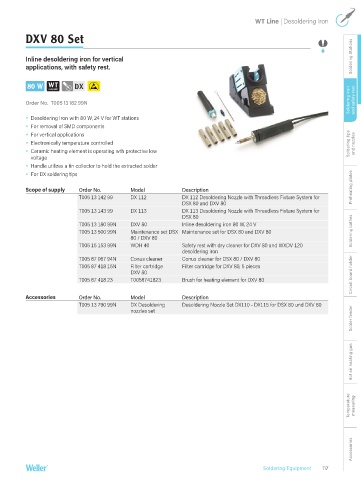

WT Line | Desoldering Iron
DXV 80 Set
Inline desoldering iron for vertical Soldering Stations
applications, with safety rest.
80 W DX
Soldering iron and safety rest
Order No. T005 13 182 99N
Desoldering Iron with 80 W, 24 V for WT stations
For removal of SMD components
For vertical applications
Electronically temperature controlled Soldering tips and nozzles
Ceramic heating element is operating wth protective low
voltage
Handle utilizes a tin collector to hold the extracted solder
For DX soldering tips
Scope of supply Order No. Model Description Preheating plates
T005 13 142 99 DX 112 DX 112 Desoldering Nozzle with Threadless Fixture System for
DSX 80 and DXV 80
T005 13 143 99 DX 113 DX 113 Desoldering Nozzle with Threadless Fixture System for
DSX 80
T005 13 180 99N DXV 80 Inline desoldering iron 80 W, 24 V
T005 13 500 99N Maintenance set DSX Maintenance set for DSX 80 and DXV 80 Soldering bathes
80 / DXV 80
T005 15 153 99N WDH 40 Safety rest with dry cleaner for DXV 80 and WXDV 120
desoldering iron
T005 87 067 94N Conus cleaner Conus cleaner for DSX 80 / DXV 80
T005 87 418 15N Filter cartridge Filter cartridge for DXV 80, 5 pieces
DXV 80
T005 87 418 23 T0058741823 Brush for heating element for DXV 80 Circuit board holder
Accessories Order No. Model Description
T005 13 790 99N DX Desoldering Desoldering Nozzle Set DX110 - DX115 for DSX 80 und DXV 80
Solder feeder
nozzles set
Hot air heating gun
Temperature measuring
Accessories
