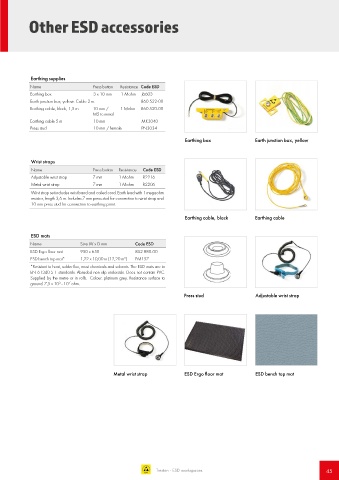

Other ESD accessories

Earthing supplies
Name Press button Resistance Code ESD
Earthing box 3 x 10 mm 1 Mohm J6603
Earth junction box, yellow. Cable 2 m. 860 522-00
Earthing cable, black, 1,5 m 10 mm / 1 Mohm 860 520-00
M5 terminal
Earthing cable 5 m 10 mm MK3040
Press stud 10 mm / female PN3034
Earthing box Earth junction box, yellow

Wrist straps
Name Press button Resistance Code ESD
Adjustable wrist strap 7 mm 1 Mohm R2216
Metal wrist strap 7 mm 1 Mohm R2206
Wrist strap set includes wrist band and coiled cord. Earth lead with 1 megaohm
resistor, length 3,6 m. Includes 7 mm press stud for connection to wrist strap and
10 mm press stud for connection to earthing point.

Earthing cable, black Earthing cable

ESD mats
Name Size W x D mm Code ESD
ESD Ergo floor mat 950 x 650 852 880-00
ESD bench top mat* 1,22 x 10,00 m (12,20 m²) PM157
*Resistant to heat, solder flux, most chemicals and solvents. The ESD mats are to
EN 61340-5-1 standards. Abraded non slip underside. Does not contain PVC.
Supplied by the metre or in rolls. Colour: platinum grey. Resistance surface to
5
7
ground: 7,5 x 10 - 10 ohm.
Press stud Adjustable wrist strap

Metal wrist strap ESD Ergo floor mat ESD bench top mat
