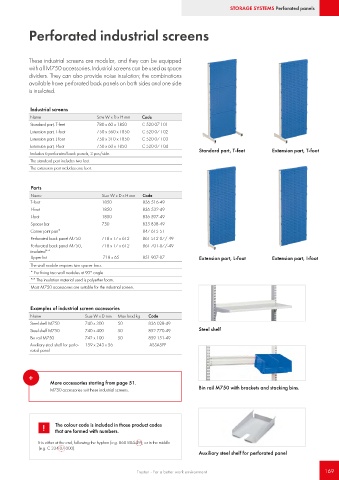

Page 169 - Treston main catalogue 2021

STORAGE SYSTEMS Perforated panels

Perforated industrial screens

These industrial screens are modular, and they can be equipped
with all M750 accessories. Industrial screens can be used as space
dividers. They can also provide noise insulation; the combinations
available have perforated back panels on both sides and one side
is insulated.

Industrial screens
Name Size W x D x H mm Code
Standard part, T-feet 780 x 60 x 1850 C 520 07 101
Extension part, T-foot 750 x 560 x 1850 C 520 07 102
Extension part, L-foot 750 x 310 x 1850 C 520 07 103
Extension part, I-foot 750 x 60 x 1850 C 520 07 104
Standard part, T-feet Extension part, T-foot
Includes 6 perforated back panels, 3 pcs/side.
The standard part includes two feet.
The extension part includes one foot.

Parts
Name Size W x D x H mm Code
T-foot 1850 836 516-49
L-foot 1850 836 532-49
I-foot 1850 836 597-49
Spacer bar 750 835 838-49
Corner joint pair* 847 615-51
Perforated back panel M750 718 x 17 x 612 861 512-07/-49
Perforated back panel M750, 718 x 17 x 612 861 701-07/-49
insulated**
Upper list 718 x 65 851 907-07 Extension part, L-foot Extension part, I-foot
The wall module requires two spacer bars.
* For fixing two wall modules at 90° angle
** The insulation material used is polyether foam.
Most M750 accessories are suitable for the industrial screen.

Examples of industrial screen accessories
Name Size W x D mm Max load kg Code
Steel shelf M750 740 x 300 50 836 028-49
Steel shelf M750 740 x 400 50 852 770-49 Steel shelf
Bin rail M750 742 x 100 50 859 151-49
Auxiliary steel shelf for perfo- 159 x 243 x 56 ASSA5PP
rated panel

+
More accessories starting from page 51.
M750 accessories suit these industrial screens. Bin rail M750 with brackets and stacking bins.

! The colour code is included in those product codes
that are formed with numbers.
It is either at the end, following the hyphen (e.g. 860 804-49), or in the middle
(e.g. C 334 07 000).
Auxiliary steel shelf for perforated panel
