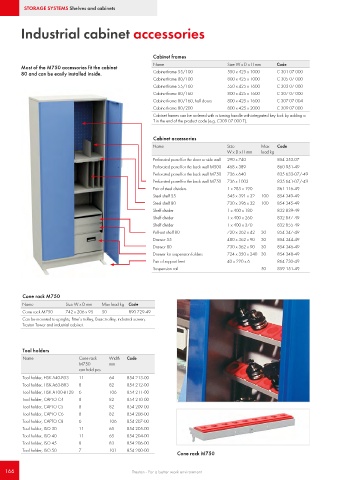

Page 166 - Treston main catalogue 2021

STORAGE SYSTEMS Shelves and cabinets

Industrial cabinet accessories

Cabinet frames
Name Size W x D x H mm Code
Most of the M750 accessories fit the cabinet
80 and can be easily installed inside. Cabinet frame 55/100 550 x 425 x 1000 C 301 07 000
Cabinet frame 80/100 800 x 425 x 1000 C 305 07 000
Cabinet frame 55/160 550 x 425 x 1600 C 303 07 000
Cabinet frame 80/160 800 x 425 x 1600 C 307 07 000
Cabinet frame 80/160, half doors 800 x 425 x 1600 C 307 07 004
Cabinet frame 80/200 800 x 425 x 2000 C 309 07 000
Cabinet frames can be ordered with a turning handle with integrated key lock by adding a
T in the end of the product code (e.g. C309 07 000 T).

Cabinet accessories
Name Size Max Code
W x D x H mm load kg
Perforated panel for the door or side wall 290 x 740 854 353-07
Perforated panel for the back wall M500 468 x 389 860 951-49
Perforated panel for the back wall M750 736 x 640 835 633-07/-49
Perforated panel for the back wall M750 736 x 1003 835 641-07/-49
Pair of steel dividers 1 x 285 x 190 861 116-49
Steel shelf 55 545 x 391 x 32 100 854 349-49
Steel shelf 80 730 x 396 x 32 100 854 345-49
Shelf divider 1 x 400 x 180 832 839-49
Shelf divider 1 x 400 x 260 832 847-49
Shelf divider 1 x 400 x 370 832 855-49
Pull-out shelf 80 730 x 362 x 42 30 854 347-49
Drawer 55 480 x 362 x 90 30 854 344-49
Drawer 80 730 x 362 x 90 30 854 346-49
Drawer for suspension folders 724 x 350 x 240 30 854 348-49
Pair of support feet 40 x 220 x 6 864 730-49
Suspension rail 50 859 151-49

Cone rack M750
Name Size W x D mm Max load kg Code
Cone rack M750 742 x 206 x 95 50 890 729-49
Can be mounted to uprights, Fitter’s trolley, Basic trolley, industrial screen,
Treston Tower and industrial cabinet.

Tool holders
Name Cone rack Width Code
M750 mm
can hold pcs
Tool holder, HSK A40-B53 11 64 854 213-00
Tool holder, HSK A63-B83 8 82 854 212-00
Tool holder, HSK A100-B128 6 106 854 211-00
Tool holder, CAPTO C4 8 82 854 210-00
Tool holder, CAPTO C5 8 82 854 209-00
Tool holder, CAPTO C6 8 82 854 208-00
Tool holder, CAPTO C8 6 106 854 207-00
Tool holder, ISO 30 11 65 854 205-00
Tool holder, ISO 40 11 65 854 204-00
Tool holder, ISO 45 8 83 854 206-00
Tool holder, ISO 50 7 101 854 200-00
Cone rack M750
